Linux 3.0 System Bus Validator UHF RFID Card Reader with QR Code P18-L2

  • 1 - 49 Pieces
    $320.00
  • 50 - 99 Pieces
    $300.00
  • 100 - 499 Pieces
    $280.00
  • >=500 Pieces
    $260.00
Model Number:
P18-L2
Screen Size:
4.3 Inch
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples - $320.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
After-sales Service Provided:
Field maintenance and repair service, Online support
Warranty:
1 Year
Operation System:
Linux 3.0
CPU:
ARM Cortex-A7 528MHz
Touch Screen Type:
Not Touch Screen
Hard Disk Capacity:
DDR (RAM)512 MB EMMC (Flash)8 GB
Standard:
ISO14443 A & B part 1 4, ISO18092
Processor:
32-bit ARM Cortex-A7 1GHz
Supply Voltage:
9-48V DC
Supply Current:
Max. 2A
Protocol:
Mifare Classic Protocols, T=CL, FeliCa
Smart Card Read /Write:
Up to 424 kbps
Operating Distance:
Up to 50 mm
Operating Frequency:
13.56 MHz
LCD Display:
160*80 dot-matrix LCD display with backlight, 4.3 inch
Dimensions:
227mm*140mm*99mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
General Packing For Linux 3.0 System Bus Validator UHF RFID Card Reader with QR Code P18-L2
Port
Shenzhen/Hong Kong/Guangzhou
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated

Linux 3.0 System Bus Validator UHF RFID Card Reader with QR Code P18-L2

General

1. The P18-L2 Bus Validator supports all smart cards compliant to ISO14443 Type A & B, Mifare Classic, DES Fire, Felice, built-in the embedded powerful 32bit ARM Cortex-A7 1 GHz processor. There are 4 SAM sockets for holding Purchase SAM to ensure the security and integrity of the transactions.

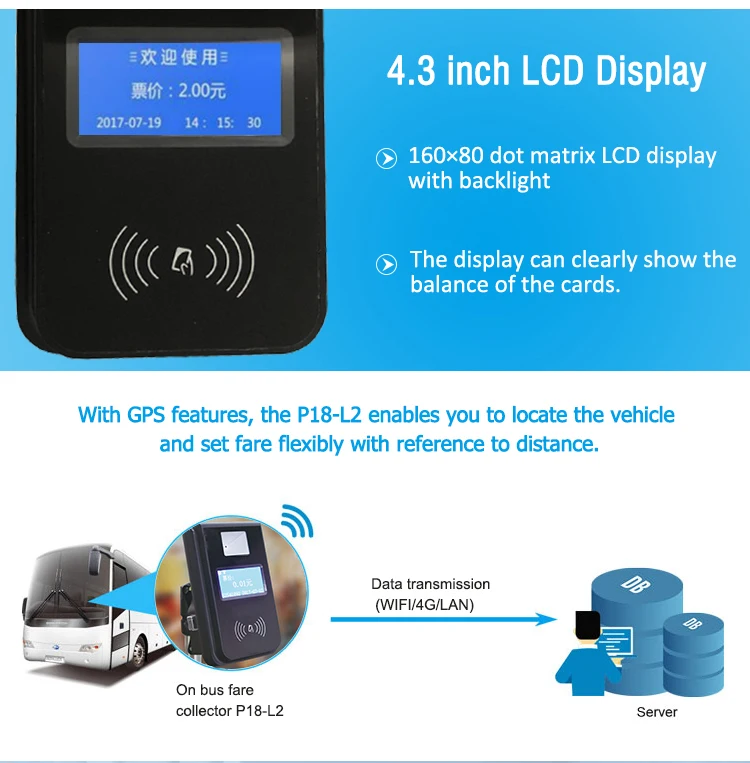

2. With the integrated smart card readers, graphical LCD, audio and LED indicators, P18-L2 Bus Validator is perfectly suitable for various types of automatic fare collection systems, e.g. for buses, trams and other transportation means. With GPS features, the P18 enables you to locate the vehicle and set fare flexibly with reference to distance.

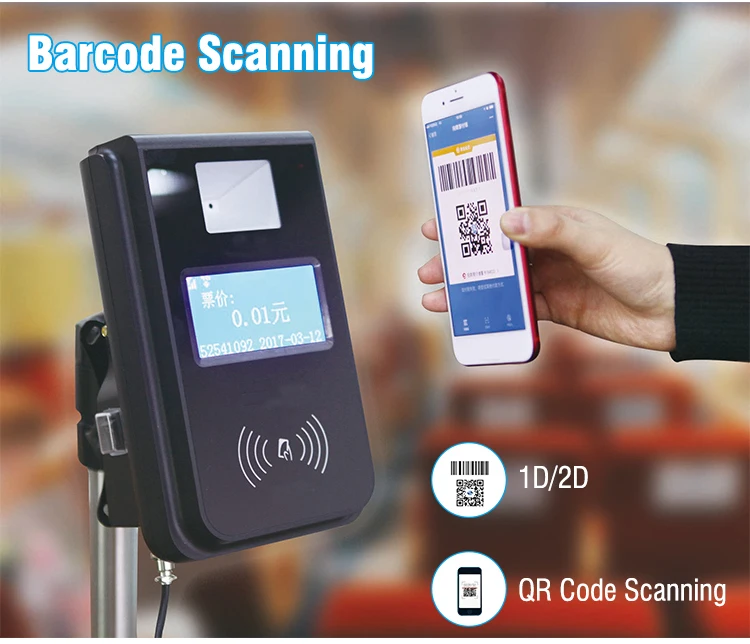

3. With the barcode scanner built-in, the P18 can support multiple cashless payment methods. Besides, the P18-L2 can support bank card payment by EMV certificate.

 Features

1. 32-bit ARM Cortex-A7 528 MHz

Ø 512 MB DDR

Ø 8 GB EMMC

Ø External 64 MB SPI Flash

Ø 8 KB FRAM

2. Linux 3.0 OS

3. 160×80 dot matrix LCD display with backlight

Ø 4.3 inch

4. 4 LED Status Indicators

5. 2 function keys

6. Support power switch

7. Built-in buzzer

8. Built-in audio speaker

9. Contactless smart card interface

Ø ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol

Ø Mi Fare® Classic, Mi Fare Ultralight C, Mi Fare EV 1, Mi Fare DES Fire

Ø Felice, ISO 18092 compliant

10. 4 x ISO7816 SAM Sockets

11. Support RS232 Interface

12. Support RS485 / Ethernet / USB Interface

13. Firmware Upgradeable

14. Real-Time Clock (RTC)

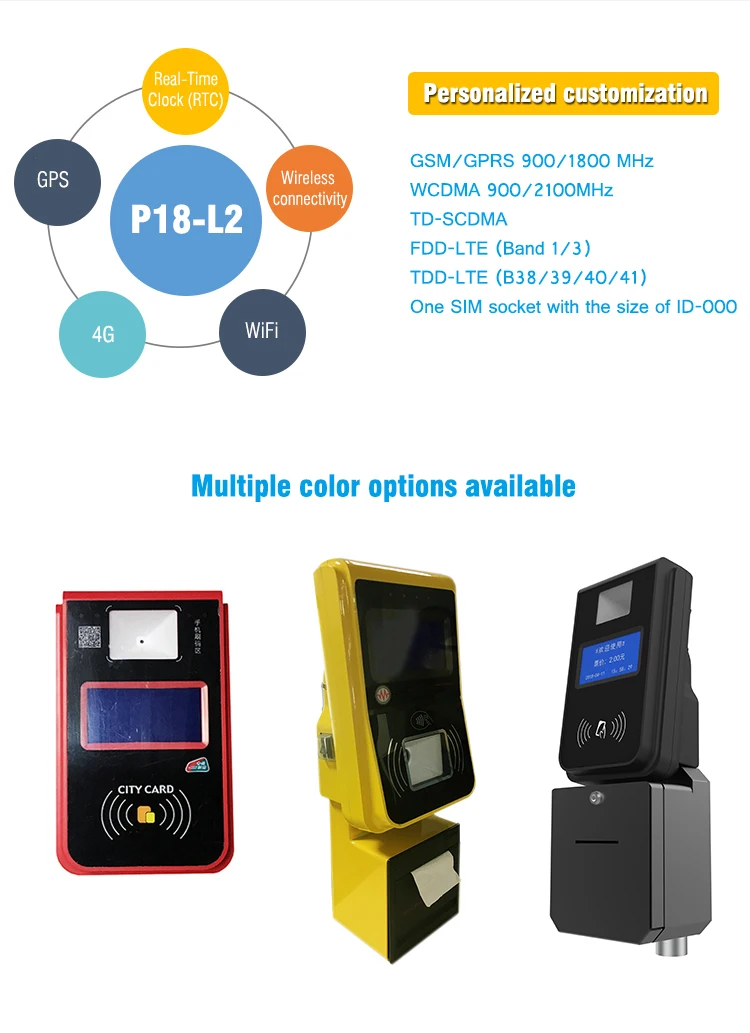

15. Wireless connectivity

Ø Mobile communication

ü GSM/GPRS 900/1800 MHz

ü WCDMA 900/2100MHz

ü TD-SCDMA

ü FDD-LTE (Band 1/3)

ü TDD-LTE (B38/39/40/41)

ü One SIM socket with the size of ID-000

Ø WiFi

Ø 4G

Ø GPS support

16. Certifications

Ø CE

Ø FCC

Ø RoHS

Ø Contactless EMV Level 1

Ø IP54

 Specifications

 Applications

Ø Transportation

Ø Bus Validator

Ø Parking
