GPRS NFC Card Payment System Android Bus Validator With QR Code P20

FOB Reference Price:Get Latest Price
$420.00 - $520.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 10 11 - 100 >100
Est. Time(days) 7 21 Negotiable
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 100 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HCCTG
Model Number:
HCC-P20
OS:
Android 5.1
CPU:
Quad-core cortex-a9 main frequency 1.4GHz,integrated GPU Mali-400 MP4
Communication:
USB-HOST,USB-OTG,HDMI,RS485 and TTL-232 optional
Memory:
DDR3 1GB+eMMC 8G(64G)
Display:
8 inch TFT-LCD, 1280*800
Feature:
Android Bus Validator With QR Code
Function:
GPS+Indicator light+Camera+Scanning+RFID
Card Reader:
ISO-14443 Type A; ISO/IEC15693 at optional
Optional:
Printing module+LAN (TCP/IP); HDMI; PSAM
Working Voltage:
DC 8V-50V
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Neutral Packing For GPRS NFC Card Payment System Android Bus Validator With QR Code P20
Port
Shenzhen/Hongkong/Guangzhou
Lead Time :
Quantity(Units) 1 - 10 11 - 100 >100
Est. Time(days) 7 21 To be negotiated

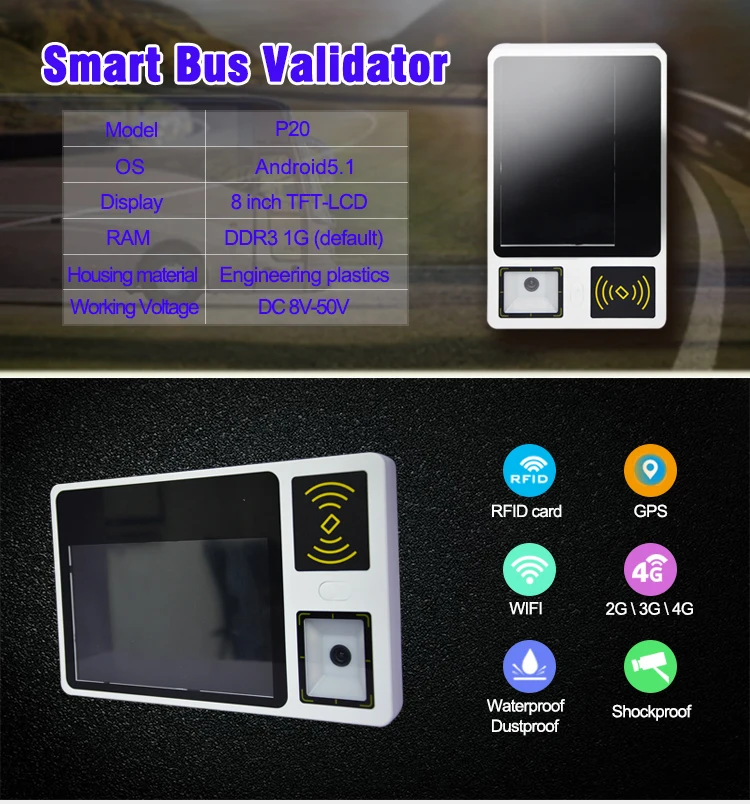

GPRS NFC Card Payment System Android Bus Validator With QR Code P20

General

  • P20 smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field:
  • Public transport fare collection
  • Scenic spots/amusement park card payment
  • Balance inquiry
  • Employee shuttle bus card validation
  • Safety school bus system

Features

  • Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
  • Support data real time uploading or USB local data collection
  • Support live voice prompts, supports 15 kinds of voice prompts: such as student card”, employee card
  • Support consumption details and statistics query, according to card No., time, operator No., etc.

Specification

Operating System

Android5.1

CPU

Quad-core cortex-a9 main frequency 1.4GHz,integrated GPU Mali-400 MP4

RAM

DDR3 1G (default)

Data storage

eMMC 8G (default), Max support 64G TF card

Storage

Data Capacity

More than 2 million detailed data for console storage, unlimited data with 4G connection

Blacklist

1 hundred million, more with TF card

Working Environment

Working Temperature

-25℃~65℃

Storage Temperature

-40℃~85℃

Working Humidity

0-90%(non-condensing)

Physical Parameter

Dimension

270x172x28mm

Housing material

Engineering plastics

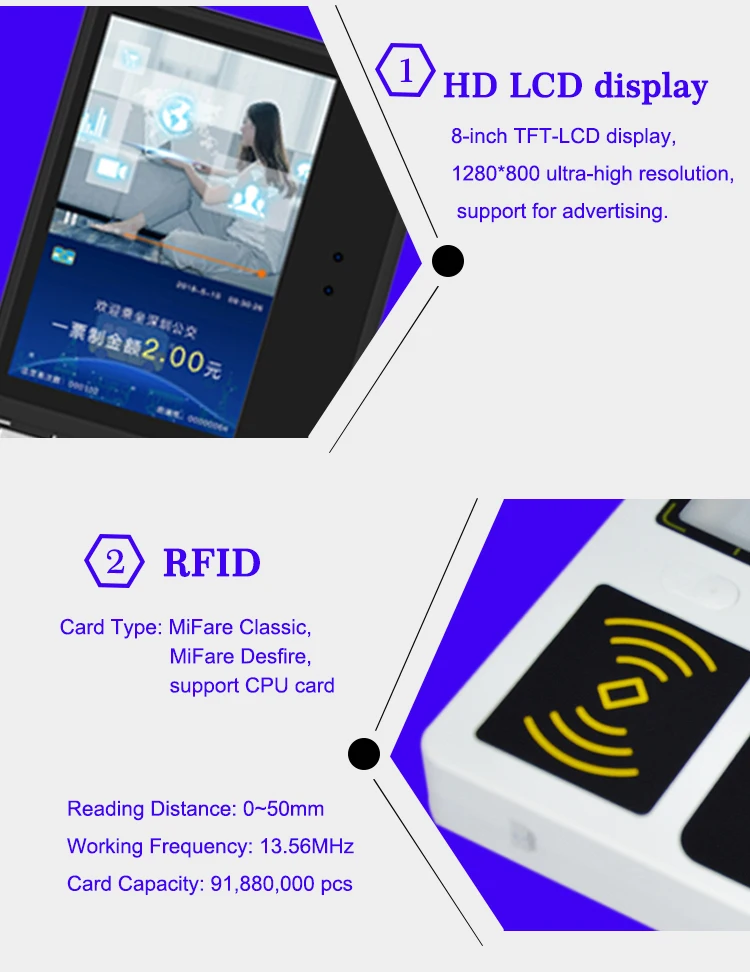

LCD display

Display

8 inch TFT-LCD, 1280*800

Indicator light

Red and Green

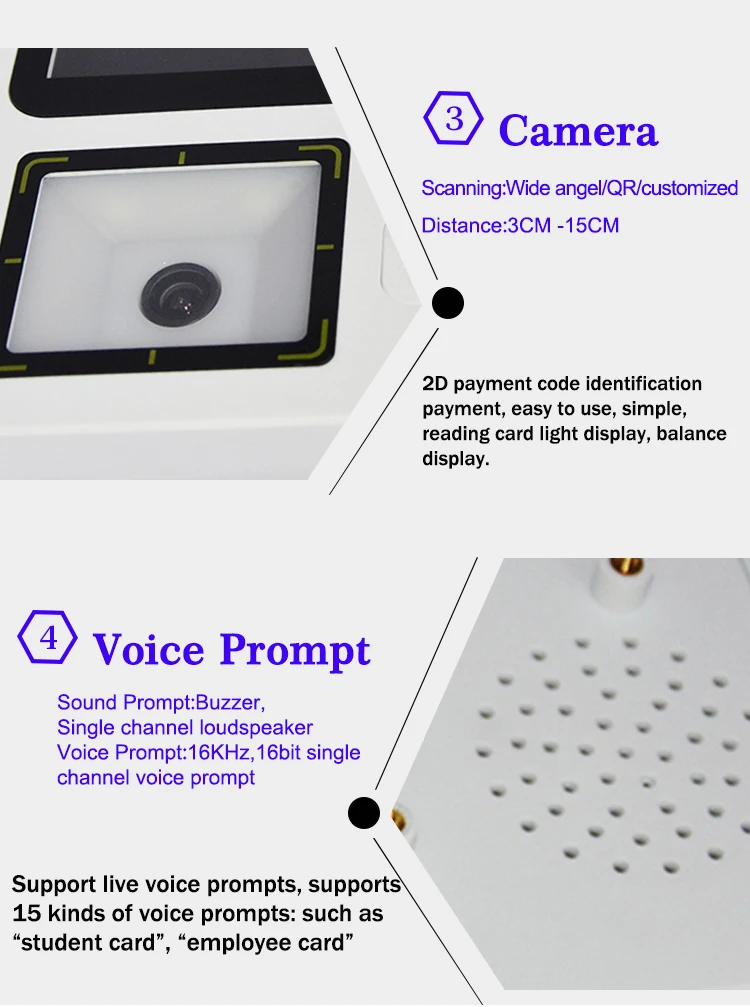

Camera

Scanning

Wide angel/QR /customized

Distance

3CM -15CM

Voice Prompt

Sound Prompt

Buzzer, Single channel loudspeaker

Voice Prompt

16KHz,16bit single channel voice prompt

Power Supply Specification

Working Voltage

DC 8V-50V

RFID

Support standard

ISO-14443 Type A; ISO/IEC15693 at optional

Reading Distance

0~50mm

Working Frequency

13.56MHz

Card Capacity

91,880,000 pcs

Card Type

MiFare Classic, MiFare Desfire, support CPU card

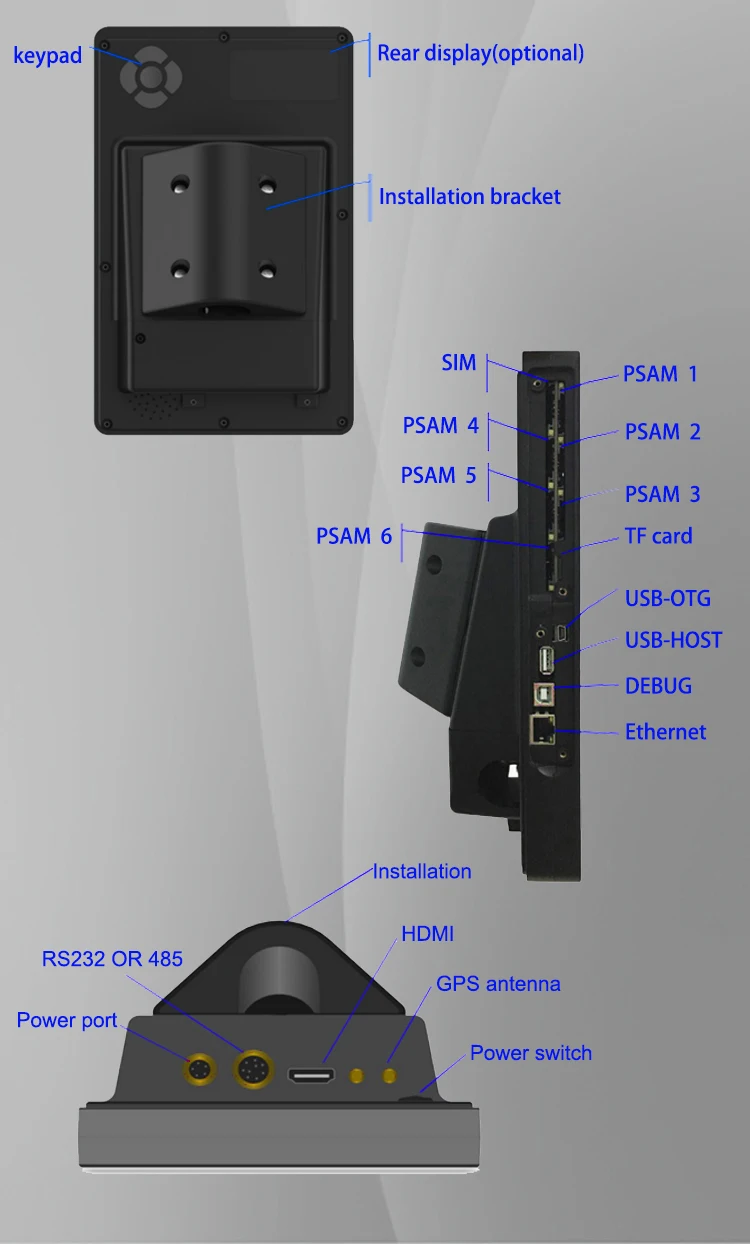

Interface

Communication Interface

USB-HOST, USB-OTG, HDMI, RS485 and TTL-232 optional

Multi screen interface



Printing

Printing module

Support external POS58printer (need 5pinaviation plug turn DB9 cable)

Paper Width

58mm

Navigation Function



Navigation way

GPS,Beidou(optional)

Working Mode



Working Mode

Stand-alone or connect to server

Power Consumption

Power Consumption

≤10W

Communication Function

Wireless Communication

2G \ 3G \ 4G

Warning Function

Warning Function

Warning when card balance is insufficient or data memory is full

Data Collection Function

Collection mode

2G\3G\4G and USB collection,WiFi and Bluetooth optional
