Wifi 4G 3G Handheld Android Touch Screen POS Machine With Printer HCC-Z90

  • 1 - 50 Units
  • 51 - 100 Units
  • 101 - 999 Units
  • >=1000 Units
Model Number:
Screen Size:
5 Inch
Lead Time:
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 100 Units)


Graphic customization (Min. Order: 100 Units) Less
Samples - $235.00 /Units, 1 Units (Min. Order): Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service, Online support
1 Year
Operation System:
Android 5.1
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
1GB + 8GB
Fingerprint Reader(Optional):
FBI certificate+ISO19794 standard, 508 DPI
EMV L1/L2, Contacted EMV L1, QPBOC L1/L2, UnionPay, PCI, CCC, FCC, CE
Lithium battery: 7.4V 2800mAh
Display screen:
5.0 inch; Resolution 480*854
2G, 3G and 4G, Wi-Fi, hot spot, Bluetooth
1*Micro USB + 1*serial port
Card Reader:
MSR+IC Chip+NFC Cards
Rear 500W pixels, front 30W; Optional: front 200W
58mm Thermal Printing
Built-in GPS
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
NETURL PACKING FOR Wifi 4G 3G Handheld Android Touch Screen POS Machine With Printer HCC-Z90
1 pc/box; Box Size: 7*25*17 cm; Weight: 1 kg;
10 pcs/carton; Carton Size: 36*27*44 cm; Weight: 7.5 kg
Lead Time :
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated
Video Description

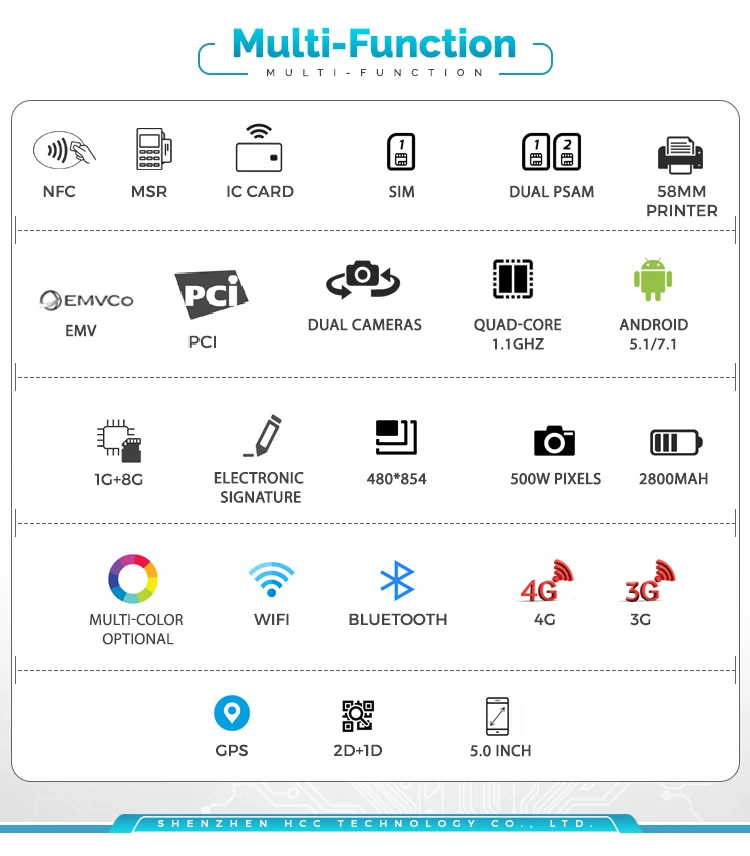

  • HCC-Z90 Android smart POS, operating system Android 5.1, no buttons, full touch screen, 5.0-inch large screen, long standby, thermal paper printing, Fingerprint reader, rear camera 500W pixels, front camera 30W pixels, achieve 2G / 3G / 4G / Wifi / Bluetooth communication, brush magnetic stripe card + inductive IC card + contact IC card, fine workmanship, top quality, expanding market choice, applicable to supermarket chains, chain restaurants, convenience stores, clothing stores, bakery shops Such cashiers, payments, invoicing and business management functions.


  • Android 5.1 depth system customization, quad-core high performance + financial grade security, dual CPU design.
  • Low-power design, support sleep for 100 hours standby, can complete 500 transactions.
  • Large-capacity lithium-ion battery, 5V mobile phone charging, support 58MM width paper roll high-speed printing.
  • Concise fashion: 2CM to thin body Build industry benchmarks, bring ultimate comfort grip, customized LOGO, color, boot LOGO screen.
  • Card type: three-track magnetic card, contact type CPU card, contactless card.
  • Anti-disassembler function design, support remote firmware update.

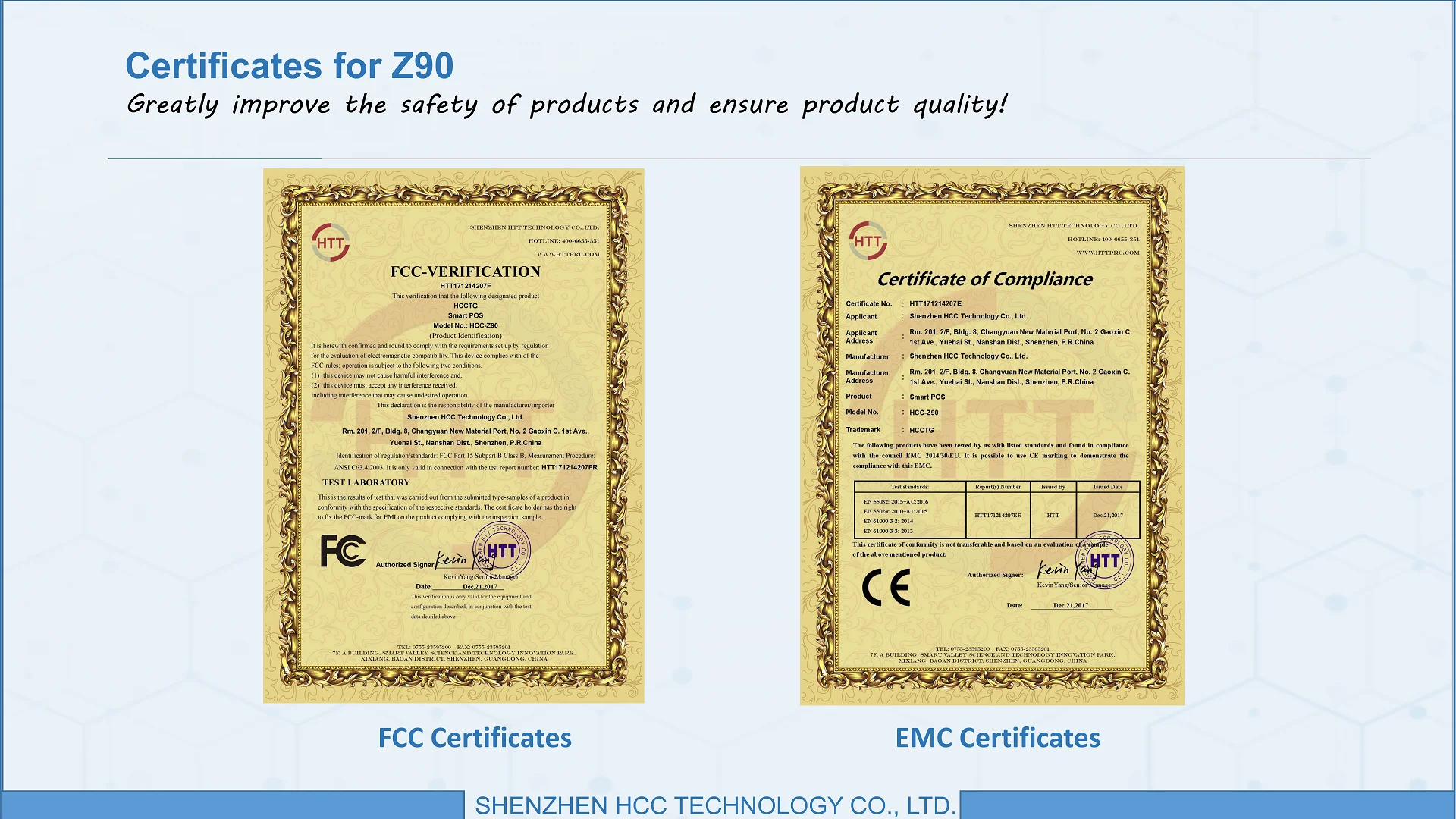

  • EMV / PBOC L1 & L2 certification, non-connected EMV / qPBOC L1 & L2, PCI / UnionPay point-of-sale terminal security certification, 3C, FCC, CE, RoHS, FBI certification.

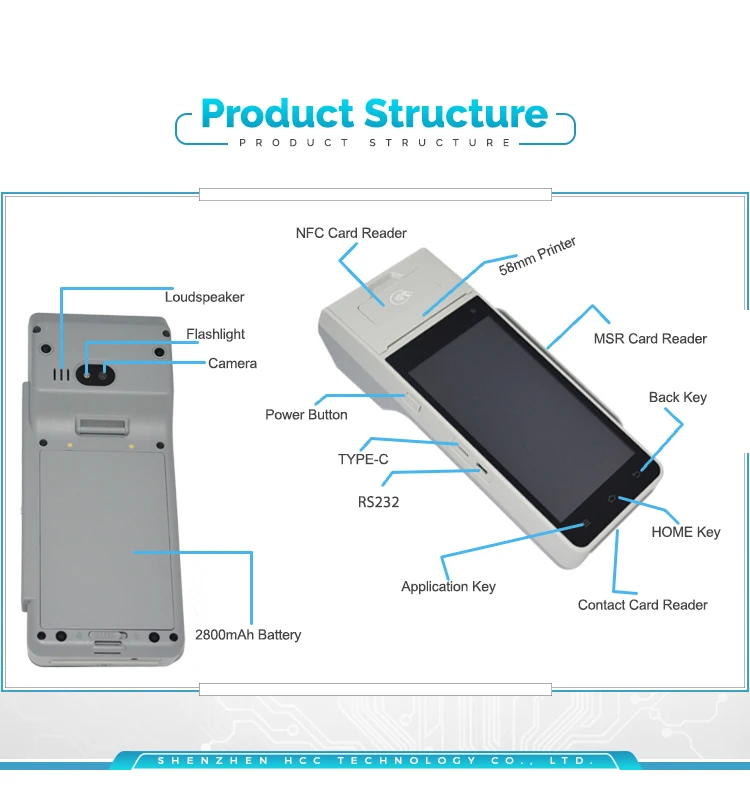

Operating system

Android 5.1 secure payment system




Qualcomm Quad-Core ARM Cortex A7 processor clocked at 1.1GHz

Extended storage

Micro SD card interface


5.0 inches, resolution 480*854

Touch screen

Capacitive touch screen, support for electronic signature


Built-in high-speed thermal printer

Paper roll: 58*30mm

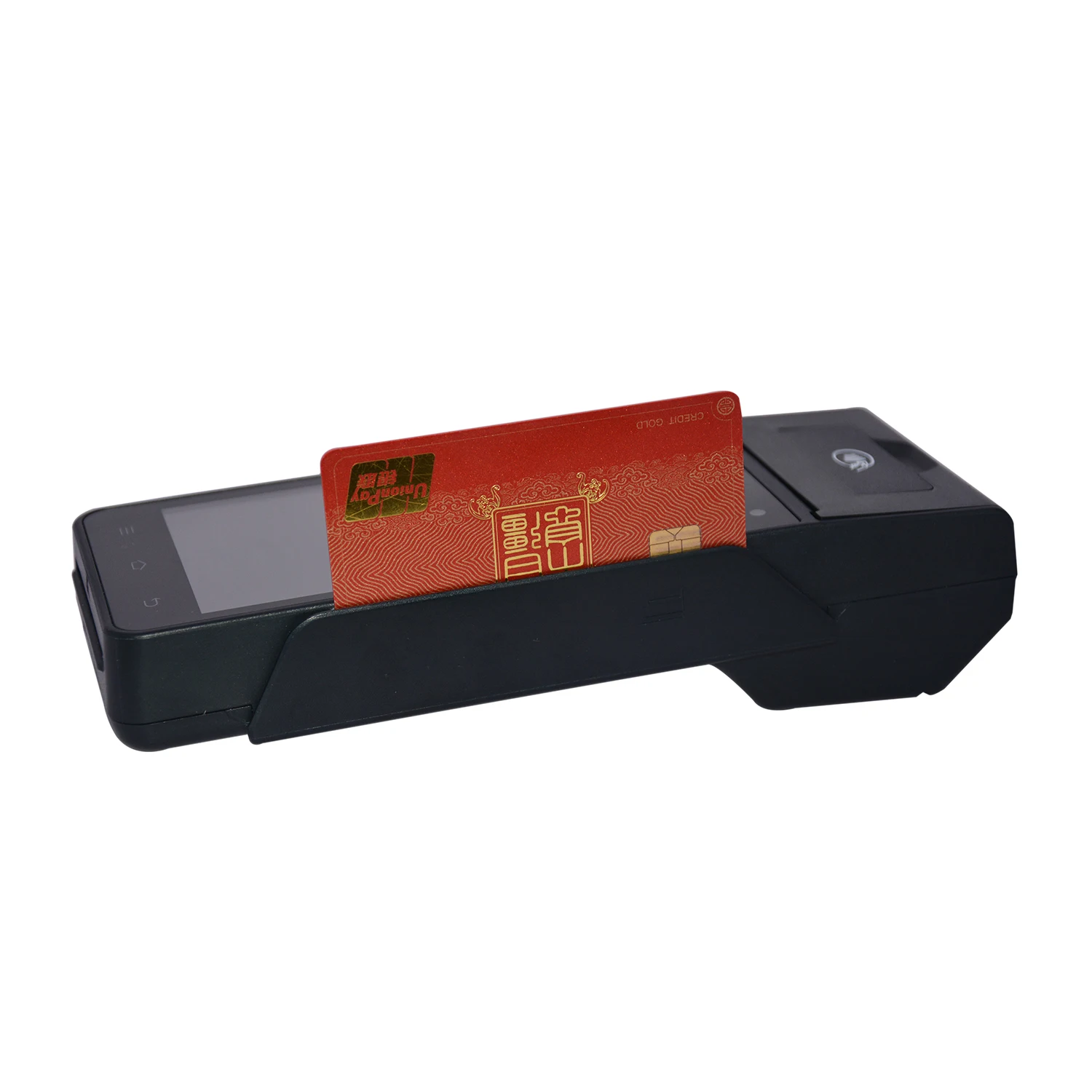

Magnetic card reader

Supports 1/2/3 magnetic card channels, two-way card swiping

IC card reader

Compliance with EMV and PBOC specifications, support for Class A (5.0V), Class B (3.0V) or Class C (1.8V) cards

SAM card holder

1 Pcs

SIM card holder

2 Pcs

Contactless reader

Supports ISO/IEC 14443 Type A&B, Mifare cards, compliant with non-connected EMV/qPBOC, specification read status indicator

USB interface

1 Micro USB OTG, compatible with USB2.0 HS standard, 1 serial port

Communication method

2G, 3G and 4G, Wi-Fi, hot spot, Bluetooth communication


Supports built-in GPS


Rear 500W pixels, front 30W

Optional: front 200W

Bar code reader

Supports 1D/2D scanning


Support recording, support voice playback, support video playback / recording

Password keyboard

Built-in password keyboard (virtual keys)

Support DES, 3DES, RSA, SHA-256 and AES algorithms


Lithium battery: 7.4V 2800mAh

Power Adapter

Input: 110V~240V AC/50~60Hz

Output: 5V DC/2A

Universal Micro USB Interface

Machine size


Machine weight


Package Size


Package weight

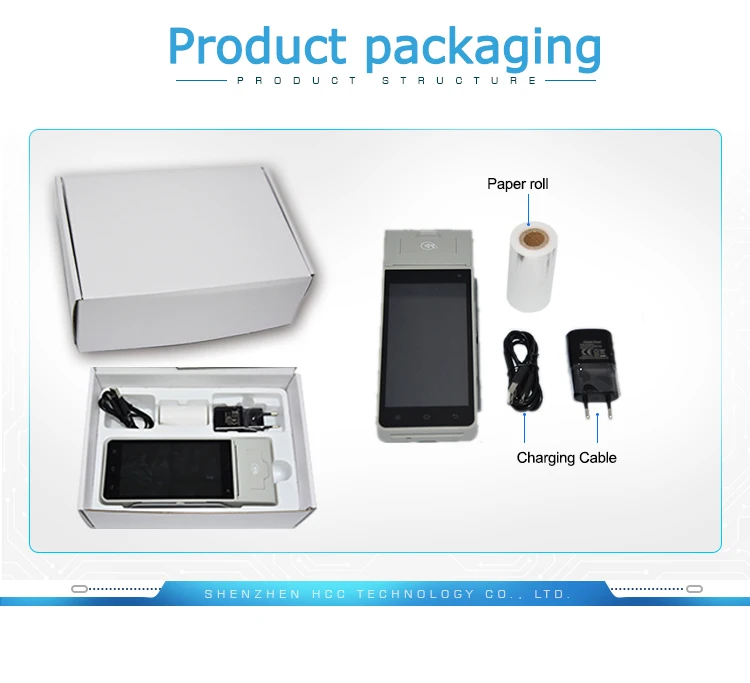

Standard accessories

Power adapter, manual, warranty card, USB charging cable, charger (optional),Leather case (optional)

Optional module


Capture Mode: Capacitive Touch

Sensing Area: 18.0*12.8 mm

Image Resolution: 508 DPI


EMV L1/L2, PBOC L1/L2, non-connected EMV L1, QUICS, QPBOC L1/L2, UnionPay smart point-of-sale terminal authentication, 3C, FCC, CE, FBI

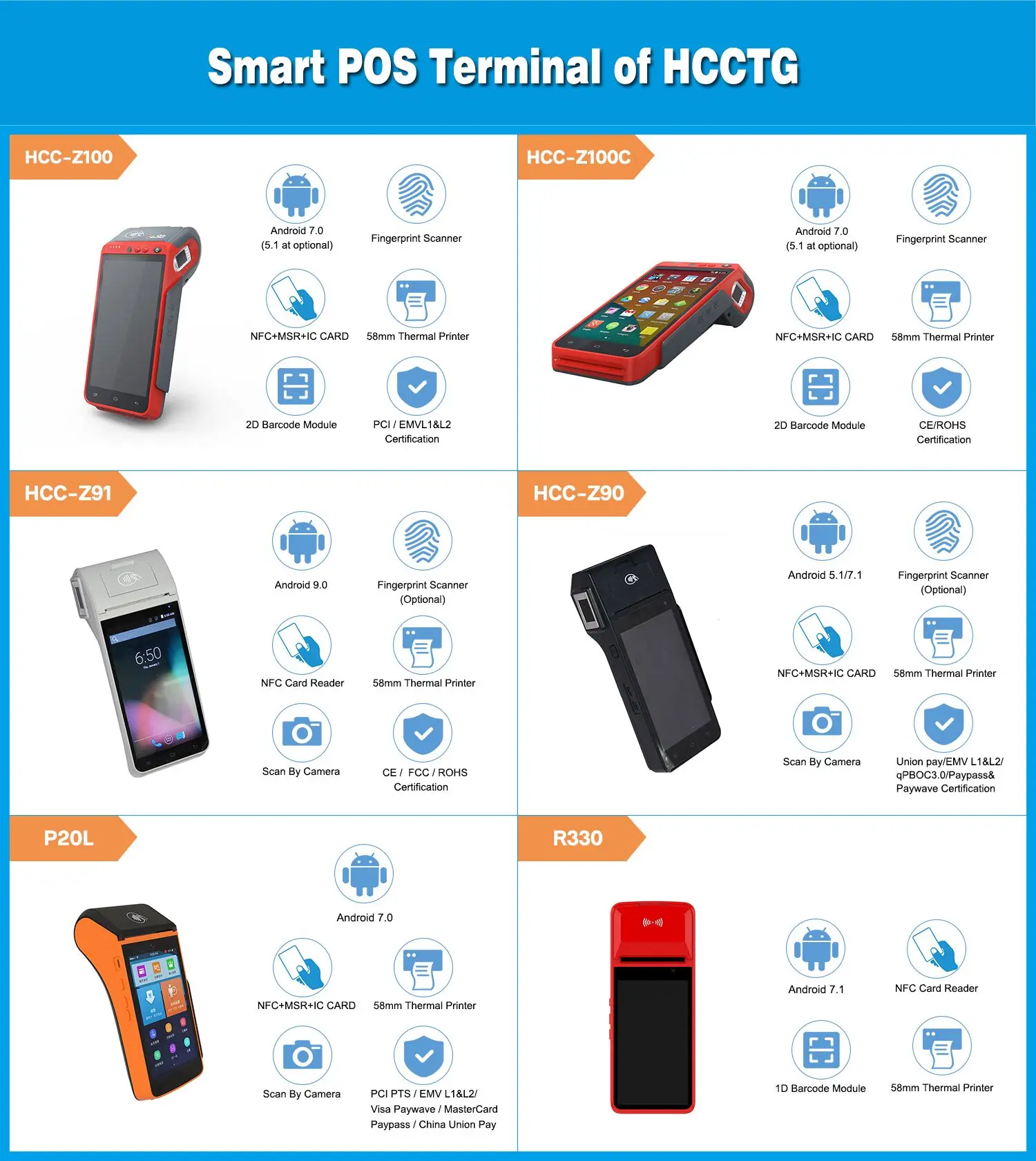

POS Products

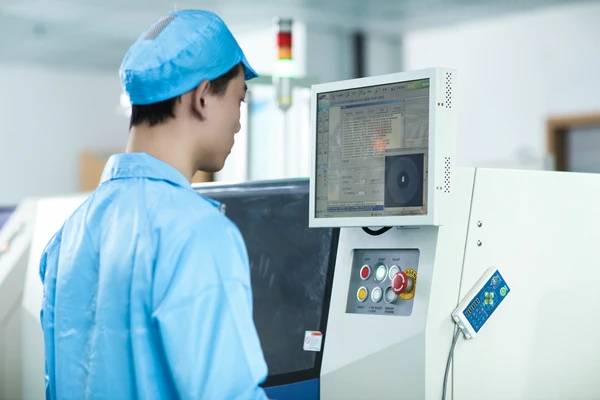

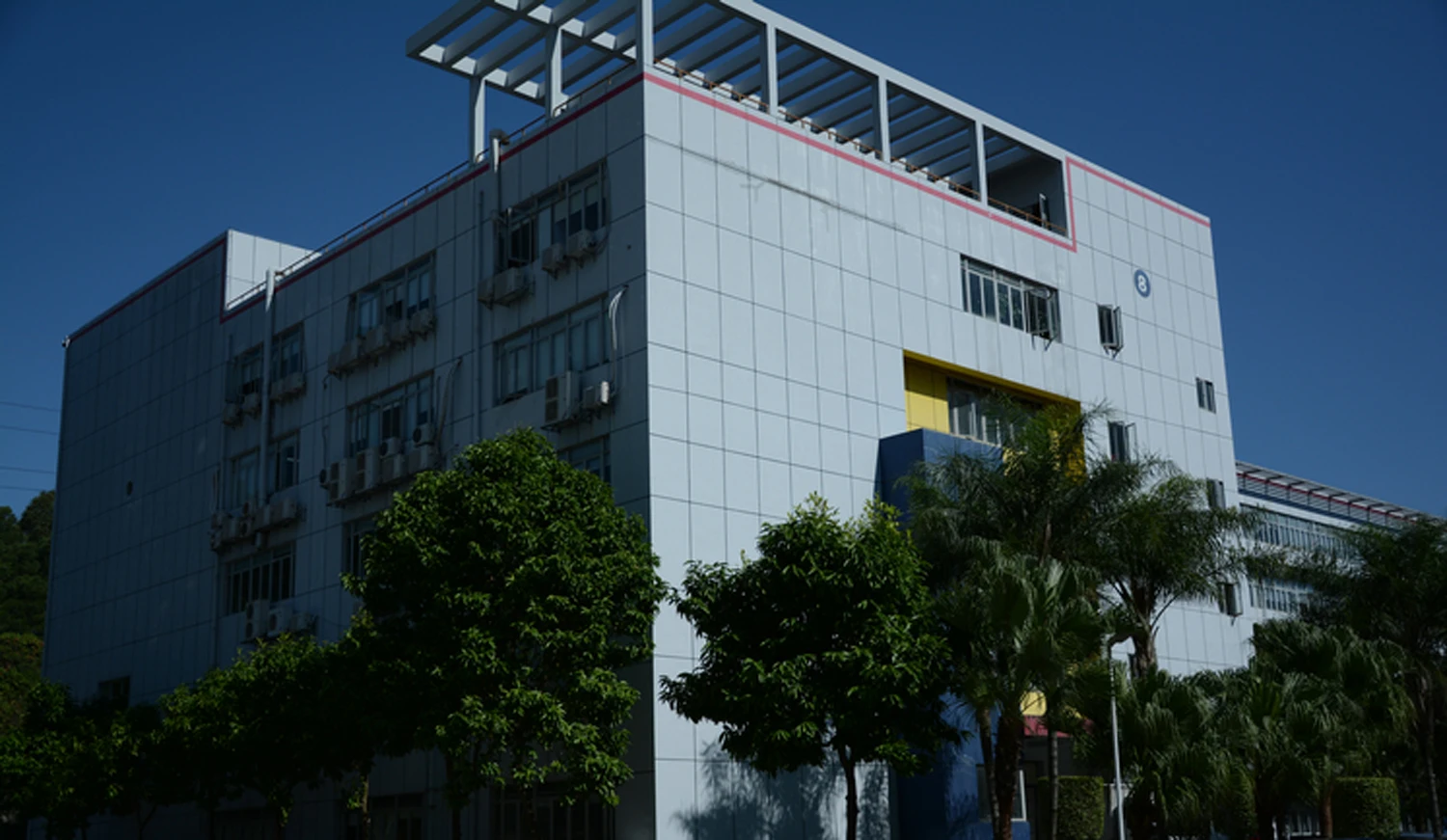

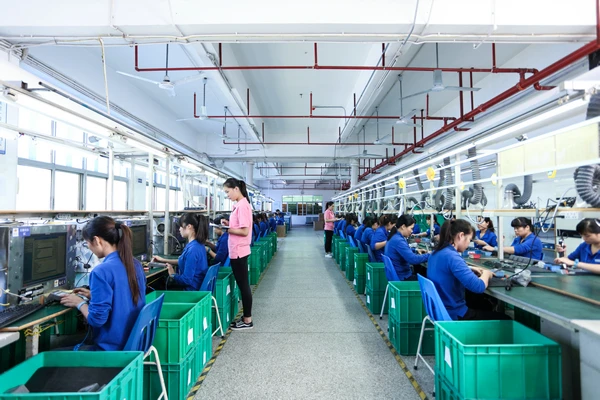

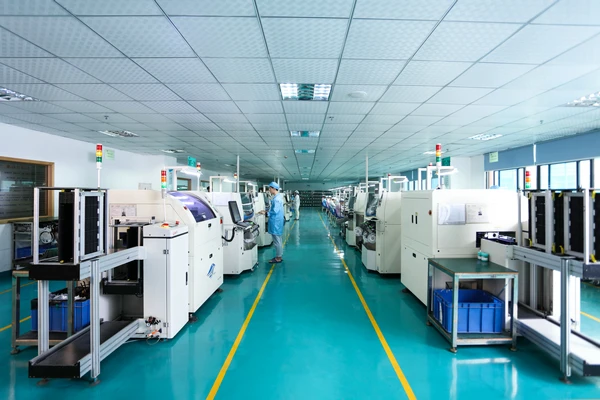

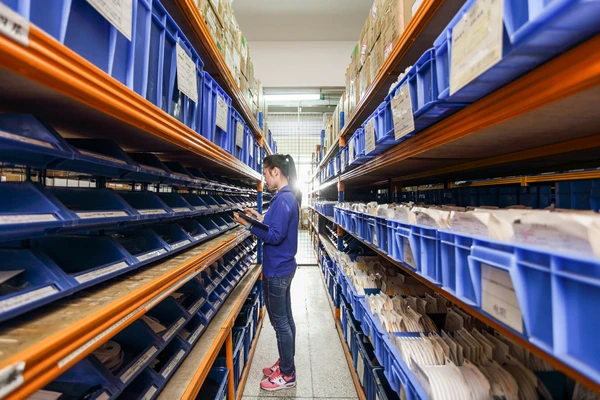

Our Factory-POS

1.What is your business scope?
We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service

according to our customers’ various application and demands.


2.What is your mode of payment?
T/T, PAYPAL, Western Union, L/C, Trade Assurance, Credit Card, Cash, MoneyGram, D/P, D/A etc.


3.When will you delivery the goods?
Sample: 2-7 days;
Quantity order: 7-30 days upon deposit received;
Customized Product: according to the contract delivery time.


4.Would you provide SDK for me?
Yes, We offer free SDK if you order sample. All the contents in a CD ROM with sample together.


5.What is the FOB price and CIF price
In general, our prices are given on a FOB basis. For CIF price, I will check the cost from our shipping agent and recommend to you.


6.How can you guarantee the quality?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.


7.How can you guarantee the exclusive sale for OEM & ODM service?
Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.


8.What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
