Desktop Visual Vantage Contactless External Smart USB NFC RFID Card Reader with LCD Display ACR1222L

  • 1 - 9 Units
  • 10 - 49 Units
  • 50 - 499 Units
  • >=500 Units
Model Number:
Lead Time:
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)


Graphic customization (Min. Order: 200 Units) Less
$80.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
USB 2.0 Full Speed
Operating Distance:
Up to 50 mm (depends on the tag type)
Supply Voltage:
Regulated 5V DC
Supply Current:
300mA (maximum); 50mA (standby); 150mA (normal)
Operating Frequency:
13.56 MHz
Operating Temperature:
Compliance / Certifications:
Product Certification certification
CE Certified.
Valid from 2018-01-09 until 2049-12-31
FCC Certified.
RoHS Certified.
Valid from 2016-09-19 until 2049-12-31
Supply Ability
Supply Ability:
9999 Unit/Units per Month Visual Vantage rfid credit external nfc usb reader with LCD- ACR
Packaging & Delivery
Packaging Details
Neutral Packing For Desktop Visual Vantage Contactless External Smart USB NFC RFID Card Reader with LCD Display ACR1222L
Lead Time :
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated
Product Presentation

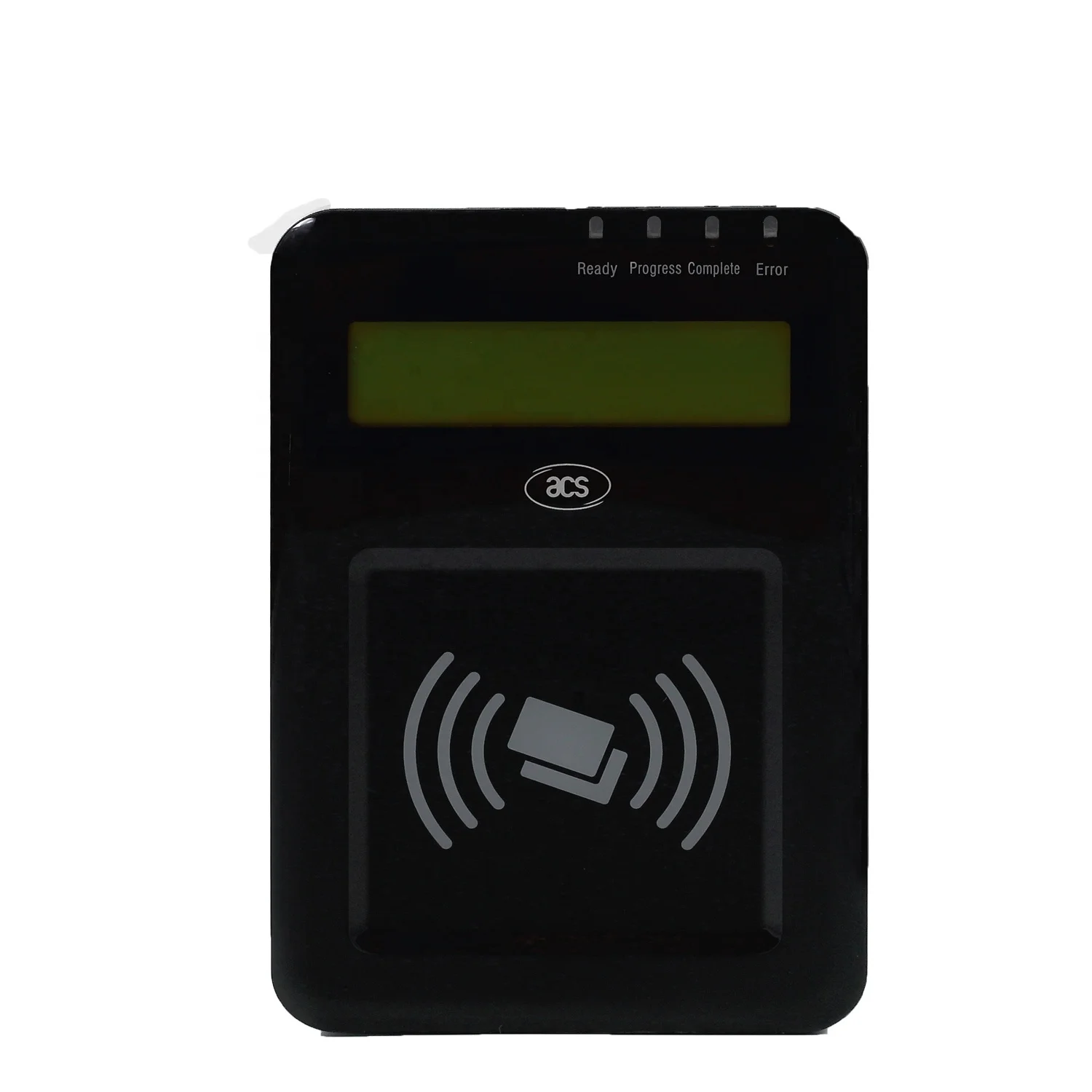

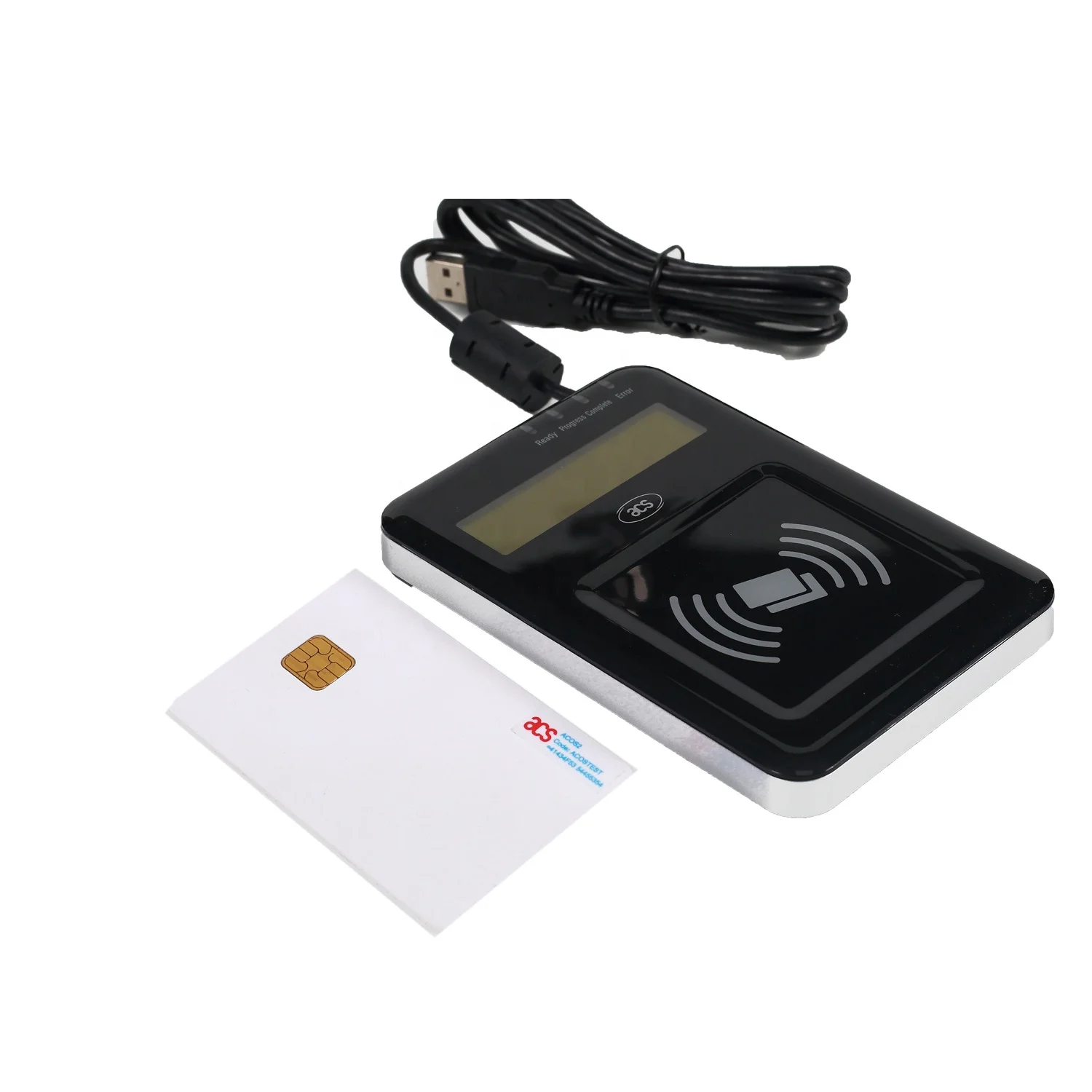

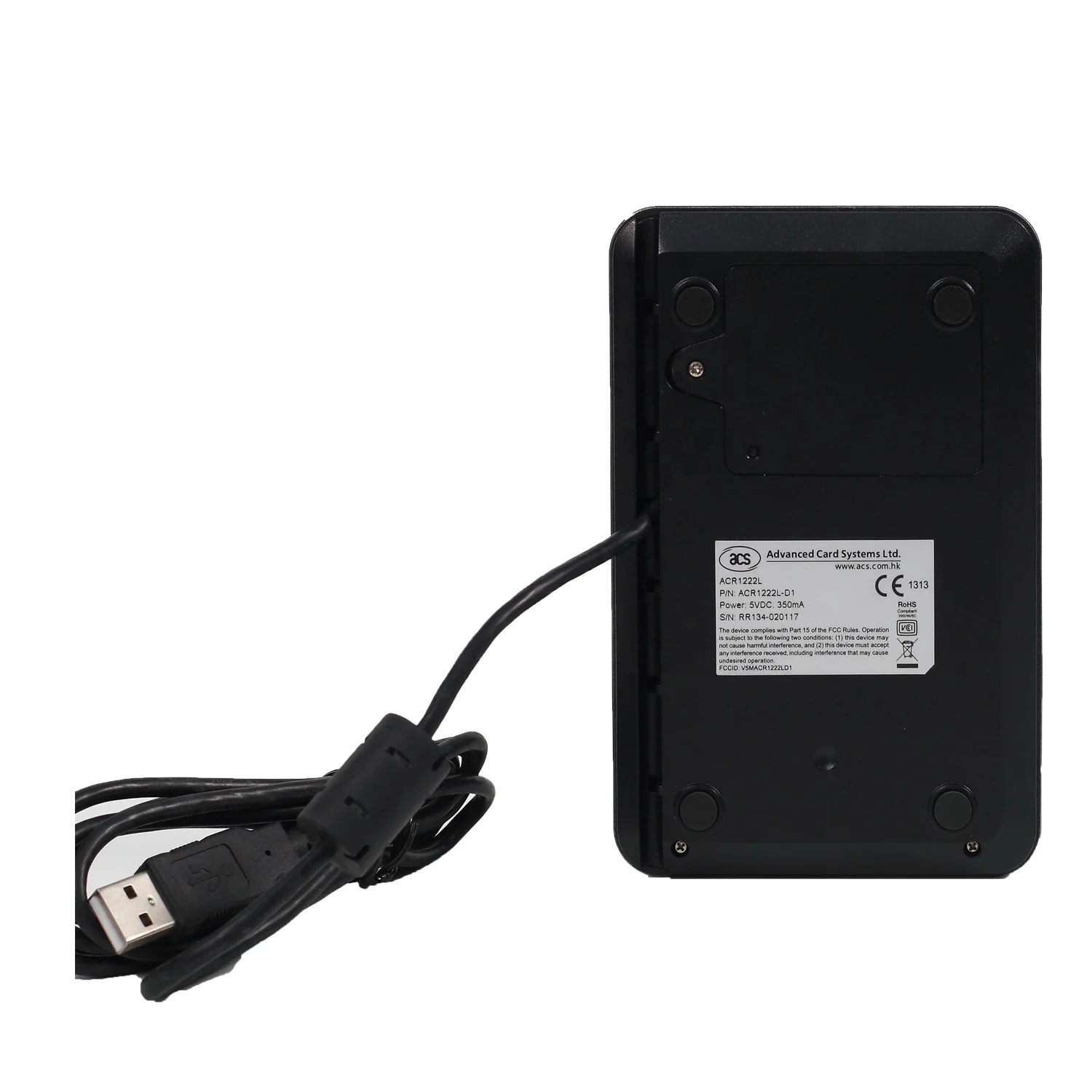

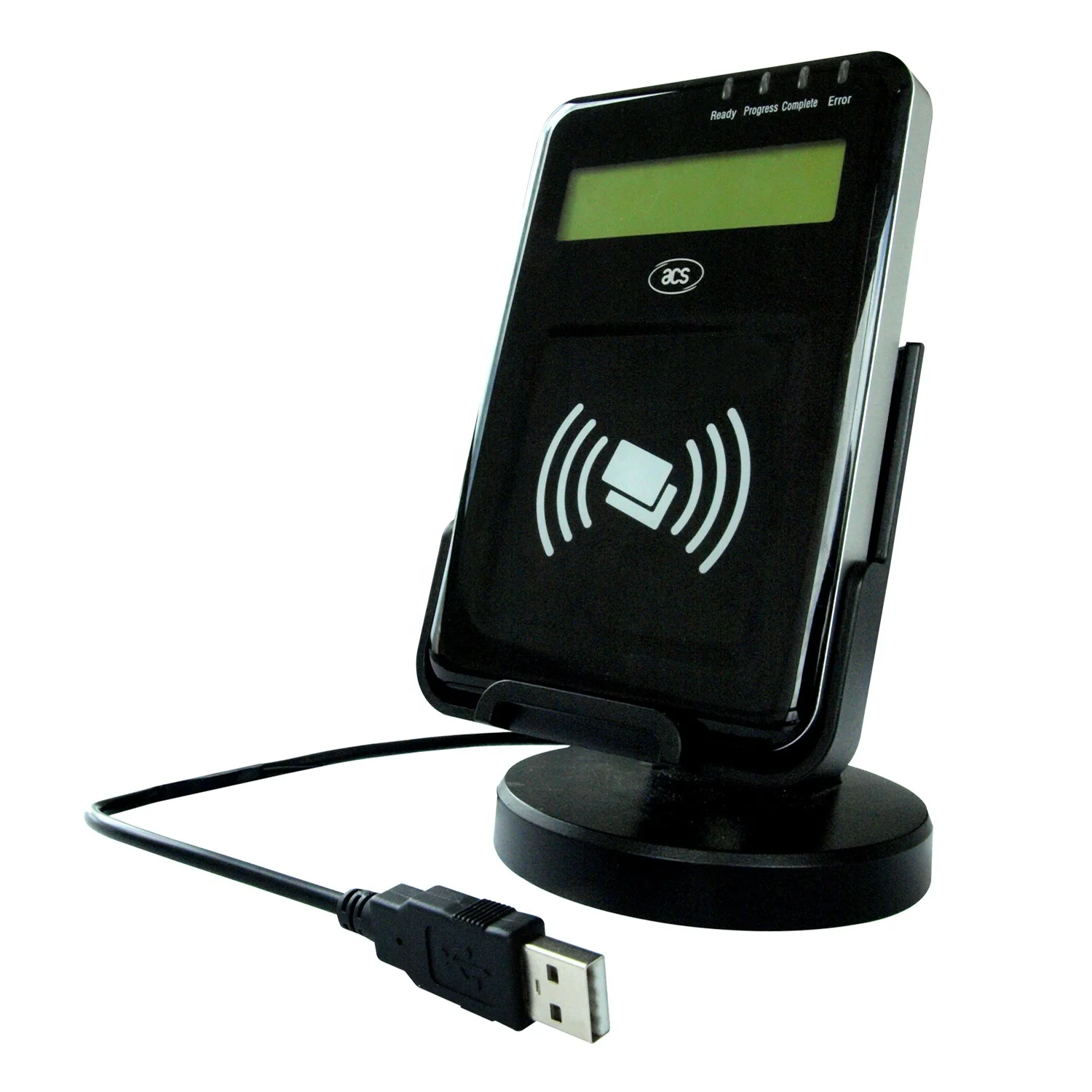

Desktop Visual Vantage Contactless External Smart USB NFC RFID Card Reader with LCD Display ACR1222L
ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, , FELICA and all 4 types of NFC tags.

With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. It allows interactive operation such as scrolling up and down, left and right, etc. Moreover its three built-in SAM slots provide enhanced security during contactless operations.

Typical applications of ACR1222L include e-payment, loyalty programs and access control.

1. USB 2.0 Full Speed Interface
2. CCID Compliance
3. Smart Card Reader:
4. Read/Write speed of up to 424 kbps
5. Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
6. Support for ISO 14443 Part 4 Type A and B cards, , FELICAand all four types of NFC (ISO/IEC 18092) tags
7. Built-in anti-collision feature (only one tag is accessed at any time)
8. Three ISO 7816 compliant SAM slots
9. Built-in Peripherals:
10. Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support
(i.e. Chinese, English, Japanese and several European languages)
11. Four user-controllable LEDs
12. User-controllable buzzer
13. USB Firmware Upgradability

1. E-Government
2. E-Banking and e-Payment
3. E-Healthcare
4. Transportation
5. Network Security
6. Access Control
7. Loyalty Program
Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Main Body: 173 g
With Stand: 415 g
USB 2.0 Full Speed
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Regulated 5V DC
Supply Current
300mA (maximum); 50mA (standby); 150mA (normal)
Operating Temperature
Operating Frequency
13.56 MHz
Smart Card Interface Support
ISO 14443 Type A & B
4 types of NFC (ISO/IEC 18092) tags
Compliance / Certifications
ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, ROHS, USB Full Speed, Microsoft WHQL
Operating System Support
Mac OS®
Android™ 3.1 and above
Details Images
