New NFC Android Mobile All In One China POS Terminal With SIM Card HCC-Z100

  • 1 - 49 Pieces
    $170.00
  • 50 - 99 Pieces
    $160.00
  • 100 - 499 Pieces
    $155.00
  • >=500 Pieces
    $150.00
Model Number:
HCC-Z100
Screen Size:
Other
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$170.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service, Online support
Warranty:
1 YEAR
Operation System:
Android 7.0
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen, Touch Screen Type
Hard Disk Capacity:
8GB ROM EMMC + 1G RAM LPDDR3
Printer:
58mm thermal printer
Deputy screen:
5.5 inch TFT IPS LCD
Communication:
WIFI Bluetooth 4G 3G 2G
Payment:
Magnetic/Smart IC/Contactless
Optional:
Fingerprint/Barcode Scanner/Russian Fiscal Module
Battery:
Li-ion battery, 7.4V /2600mAH
Charging Port:
Type C USB Port ,5V DC,2A
Certification:
CE,RoHS,FCC
resolution:
1280*720
Product Certification certification
CE Certified.
FCC Certified.
RoHS Certified.
Valid from 2016-01-27 until 2049-12-31
Supply Ability
Supply Ability:
300000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
General Packing For New NFC Android Mobile All In One China POS Terminal With SIM Card HCC-Z100
1 pc/box; Box Size: 26*21*11 cm; Weight: 0.5 kg;
5 pcs/carton; Carton Size: 36*40*31 cm; Weight: 5 kg;
20 pcs/carton; Carton Size: 44*55*47 cm; Weight: 17 kg;
Port
Shenzhen/HongKong/Guangzhou
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated
Video Description
Product Description
  • Product performance description

Android Smart POS Terminal, support MSR, smart card and NFC card, with 5MP camera, 4G, 3 G and 2 G network, and Wifi+Bluetooth, with 58mm printer O/S is Android 7.0

Product Paramenters

New NFC Android Mobile All In One China POS Terminal With SIM Card HCC-Z100

General
The HCC-Z100 is the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI. Empowered by Quad-core CPU and massive memory, HCC-Z100 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Basic
Characteristics
Panel
Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers
Dimensions
206mm*84mm*32mm (max 56mm)
Weight
530g(Battery included)
Keys
3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
3 Virtual keys: Menu, Home, Back
Input
Chinese/English ,and supports handwriting and soft keyboard
Interfaces
Micro SD Card Slot
1 PCS
SIM Card Slot
2 PCS MICRO SIM
PSAM Card Slot
2 PCS Conforms to ISO7816 standard
USB Port
1PCS TYPE C USB
Environment
Operating Temperature
-10°C to 50°C
Storage Temperature
-20°C to 70°C
Humidity
5% to 95% Relative Humidity, Non-Condensing
Anti-tamper
Without Anti-tamper function
Optional
Fingerprint
Semiconductor capacitance
18mm x 12.8mm imaging area
256 x 360 pixel array
Cross match FBI certified
508dpi
Front camera
2 Megapixel Fixed Focal Camera
Barcode Scanner
Honeywell 2D Image Engine, Support 1D and 2D symbologies
Positioning
GLONASS, Bei-Dou satellite navigation system
Fiscal Module
Russian format

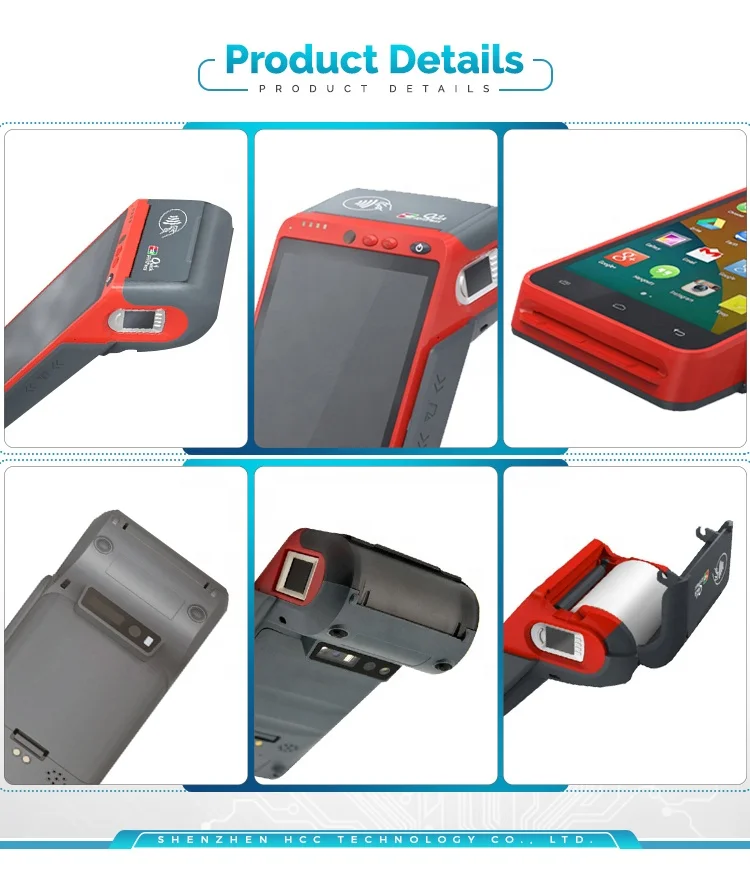

Details Images
Payment
Magnetic Card reader
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
Contactless Card reader
Supports 14443A / 14443B、NFC-F(JIS 6319-4)、NFC-V(ISO 15693)、ISO-DEP(ISO 14443-4)、FeliCa、MIFARE、DESFire
Smart Card reader
Supports ISO7816 standard;
AT24C01、AT24C02、AT24C04、AT24C08、AT24C16、AT24C32、AT24C64、AT88SC101、AT88SC102、AT88SC153、AT88SC1608、SLE4442、SLE4428;

Exterior
5.5 inch TFT IPS LCD
resolution 1280*720
5MP camera with LED flash and auto-focus function
High-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll;
Seiko Printing Head
Our Certifications
Related Products
Company Introduction
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research,
development,production, sale and service of POS & POS Peripheral Products. Our company are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service.
Our Strength
In the past 11 years, we have deepened the printing and payment industry and expanded markets in Southeast Asia, Central Asia,the Middle East, Central and South America, Eastern Europe and Western Europe. Our products have a growing market share in these regions, and also exported to clients over 100 foreign countries and regions.

Main production line
1.Multiple Payment -- Android POS
2.Transit Fare Payment -- Automatic Fare Collection (AFC) / Bus Validator Machine
3.E-commerce Express Logistic -- Android PDA (Mobile Receipt/ Label Printer)

Company's Mission
Make Payment & Printing Faster & Easier!
Our Factory
Payment & logistics
FAQ
1. Do you have POS in stock? How long you can send out the goods? Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days. 2. What is your warranty? We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field; 3.Can I get a sample for testing before formal order? How to get it? Yes. Of course. We will arrange shipment for you through DHL as soon as we receive the payment. 4. Can you provide SDK? Yes, SDK will be provided free to help you do the secondary development. 5. Do you offer other POS peripherals? Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart / NFC / Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register,Passport Reader, Check Scanner! 6.What payment methods your company accept? We mainly accept Paypal, T/T, Western Union, MoneyGram, D/A, D/P, Visa; Master; E-checking; Trade Assurance; Credit Card; Cash. 7.What's the shipment terms and delivery time of your compay? Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. But mostly ,the shipment time is 3-5 working days after delivery. 8. Are you manufacturer? Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of PC/POS/Mobile Payment product & Solution.
