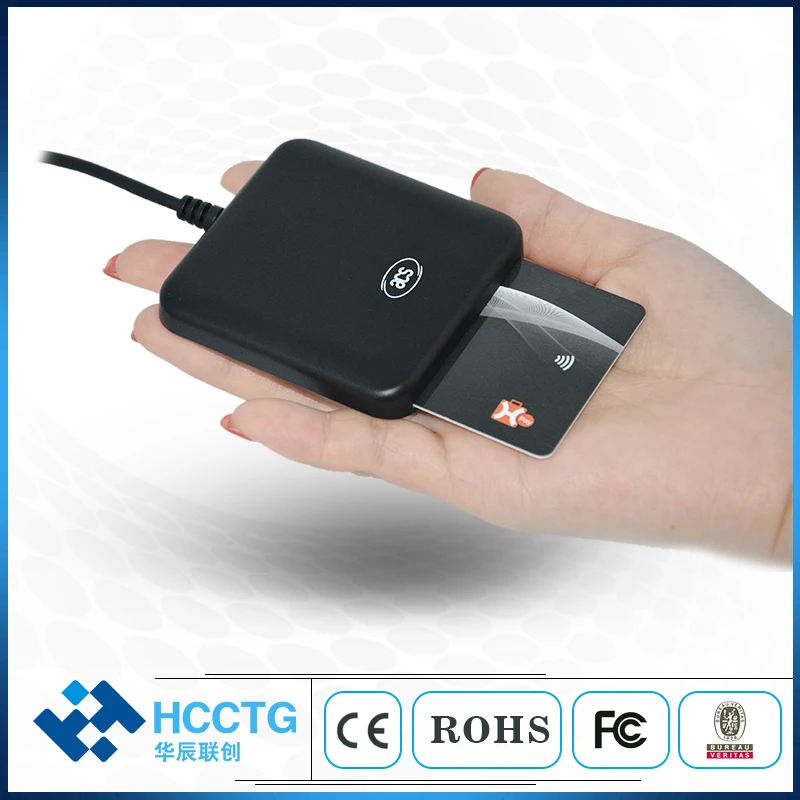

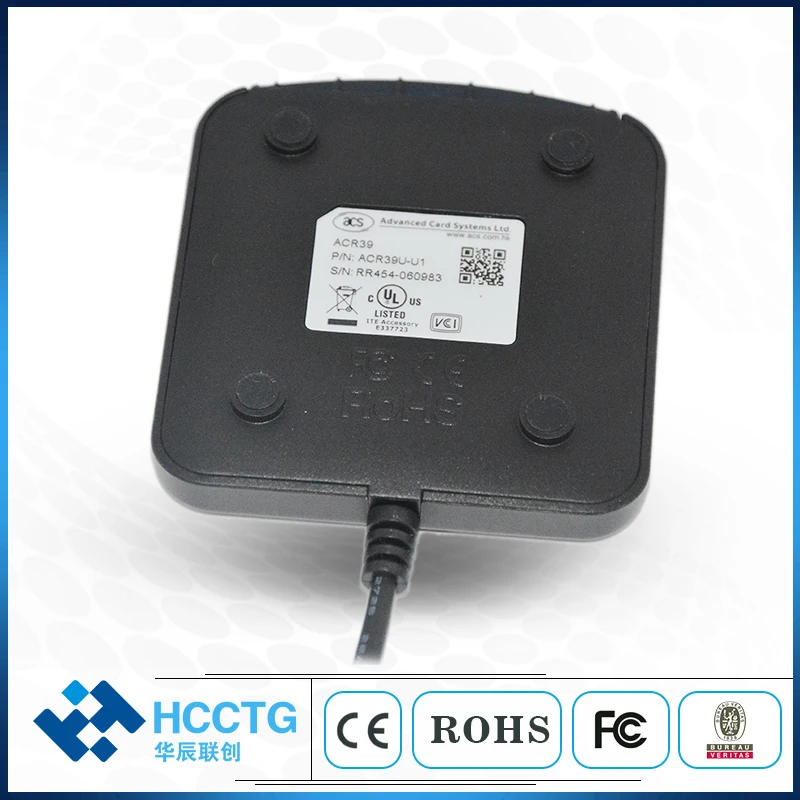

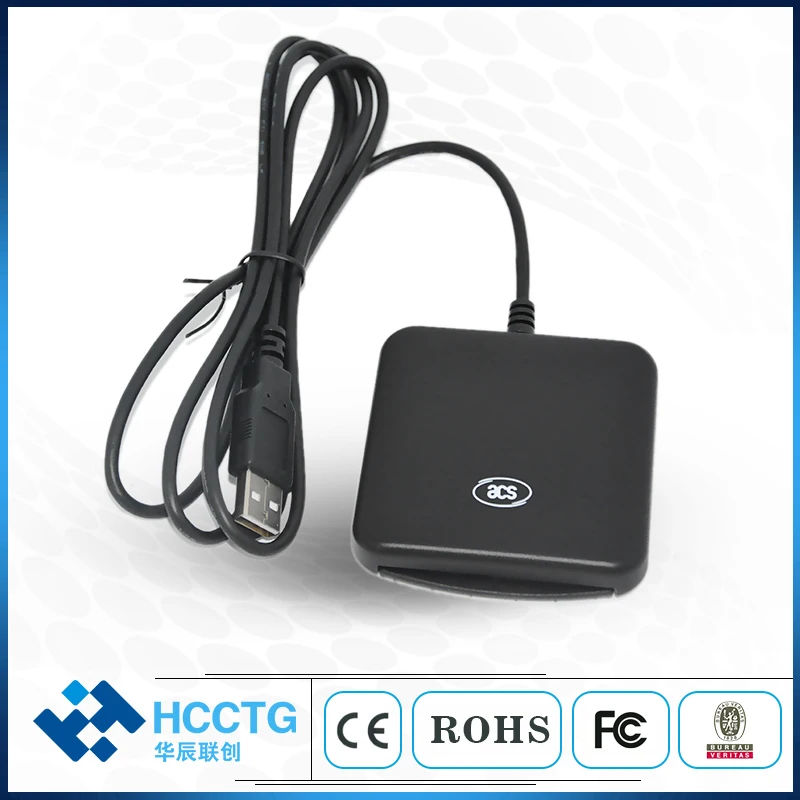

Compliant With PC/SC and CCID ISO7816 Contact IC Chip Card Reader/Writer ACR39U-U1

  • 1 - 9 Units
    $16.00
  • 10 - 49 Units
    $13.00
  • 50 - 499 Units
    $12.00
  • >=500 Units
    $11.00
Color:
Lead Time:
Quantity(Units) 1 - 100 101 - 500 >500
Est. Time(days) 7 21 Negotiable
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Samples - $16.00 /Units, 1 Units (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ACS
Model Number:
ACR39U-U1
Type:
CF Card, Memory Stick Card, MMC Card, SD Card, SM Card, XD Card
Interface:
USB
Card Slots:
All in 1 / Multi in 1
Installation:
Internal
Place of Origin:
Guangdong, China
Speed:
600 Kbps
OS:
Android, Window, Linux and Mac
Support cards:
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
Certification:
EMV Level 1 (Contact),PC/SC,CCID,CE,FCC, RoHS 2 and so on
Supply Current:
Max. 50 mA
Supply Voltage:
Regulated 5 V DC
Providing:
Free SDK
CLK Frequency:
4.8 MHz
MTBF:
500,000 hrs
Dimension:
72.2 mm (L) x 69.0 mm (W) x 14.0 mm (H)
Supply Ability
Supply Ability:
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Neutral Packing For ACR39U-U1
1 pc/box; Box Size: 7.22*6.9*1.4CM; Weight:0.065 kg;
150 pcs/carton; Carton Size: 58*40*28CM; Weight: 13 kg;
Port
Shenzhen / Hongkong / Guangzhou / shanghai
Lead Time :
Quantity(Units) 1 - 100 101 - 500 >500
Est. Time(days) 7 21 To be negotiated
Video Description





Compliant With PC/SC and CCID ISO7816 Contact IC Chip Card Reader/Writer ACR39U-U1

Features



  • USB 2.0 Full Speed Interface
  • USB Type C Connector
  • Plug and Play - CCID support brings utmost mobility
  • Smart Card Reader:

Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

Supports CAC

Supports SIPRNET Card

Supports J-LIS Card

Supports microprocessor cards with T=0 or T=1 protocol

Supports memory cards

Supports PPS (Protocol and Parameters Selection)

  • Features Short-Circuit Protection
  • Application Programming Interface:

Supports PC/SC

Supports CT-API CT-API (through wrapper on top of PC/SC)

Supports Android™ 3.1 and later



Application

1. E-Government

2. E-Banking and e-Payment

3. E- Health care

4. Transportation

5. Network Security

6. Access Control

7. Loyalty Program

8. Smart Poster

Specifications



Dimensions

72.2 mm (L) * 69.0 mm (W) * 14.5 mm (H)

Weight

60g

Color

Black (Matte)

Protocol

USB CCID

Connector Type

Standard Type A

Power Source

From USB port

Speed

USB Full Speed (12 Mbps)

Supply Voltage

5 V

Cable Length

1.5 m (Fixed)

Number of Slot

1 Full-sized Card Slot

Standard

ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol

T=0; T=1; Memory Card Support

Supply Current

Max. 50mA

Smart Card Read/Write Speed

9.6 Kbps - 600 Kbps

Short Circuit Protection

(+5) V/GND on all pins

Clock Frequency

4.8 MHz

Card Connector Type

Contact

Card Insertion Cycles

Min.100,000

LED

Green

PC-linked Mode

PC/SC

CT-API (through wrapper on top of PC/SC)

Temperature

0 °C - 60 °C

Humidity

Max. 90% (non-condensing)

MTBF

500,000 hrs

Certifications/Compliance



EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL

Device Driver Operating System Support



Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016


Auto ID Products

Our Factory-Auto ID

Certificates-Auto ID



FQA

1.What is your business scope?
We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service

according to our customers’ various application and demands.



2.What is your mode of payment?
T/T, PAYPAL, Western Union, L/C, Trade Assurance, Credit Card, Cash, MoneyGram, D/P, D/A etc.



3.When will you delivery the goods?
Sample: 2-7 days;
Quantity order: 7-30 days upon deposit received;
Customized Product: according to the contract delivery time.



4.Would you provide SDK for me?
Yes, We offer free SDK if you order sample. All the contents in a CD ROM with sample together.



5.What is the FOB price and CIF price
In general, our prices are given on a FOB basis. For CIF price, I will check the cost from our shipping agent and recommend to you.



6.How can you guarantee the quality?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.



7.How can you guarantee the exclusive sale for OEM & ODM service?
Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.



8.What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
