Hot! EFT Android Handheld Mobile Payment Smart Card Reader POS terminal HCC-Z90

  • 1 - 49 Units
    $160.00
  • 50 - 99 Units
    $150.00
  • 100 - 999 Units
    $145.00
  • >=1000 Units
    $135.00
Model Number:
HCC-Z90
Screen Size:
5 Inch
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)

More

Graphic customization (Min. Order: 200 Units) Less
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service, Online support
Warranty:
1 Year
Operation System:
Android
CPU:
at 1.1GHz, Qualcomm Quad-Core ARM Cortex A7 processor clocked at 1.1GHz
Touch Screen Type:
Resistance Screen
Display screen:
5.0 inch screen touch, 480*854
Operating system:
Android 5.1OS
Certification:
EMV L1/L2, QPBOC L1/L2, UnionPay,PCI, 3C, FCC, CE
Printer:
Built-in thermal printer, Paper roll: 58*30mm
Camera:
500W pixels, front 30W, Optional: front 200W
Communication:
4 g/3 g/2 g network Wi-fi communications, support hot spots Bluetooth
Battery:
Lithium battery: 7.4V 2800mAh
Card Reader:
MSR+IC+Contactless+NFC Cards
Bar code reader:
Supports 1D/2D scanning
Product Certification Verified
EMC Certified.
FCC Certified.
Supply Ability
Supply Ability:
20000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Neutral Packing for Hot! EFT Android Handheld Mobile Payment Smart Card Reader POS terminal HCC-Z90
1 pc/box; Box Size: 7*25*17 cm; Weight: 1 kg;
10 pcs/carton; Carton Size: 36*27*44 cm; Weight: 7.5 kg;
Port
shenzhen,guangzhou,hongkong,shanghai
Lead Time :
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated
Video Description





Hot! EFT Android Handheld Mobile Payment Smart Card Reader POS terminal HCC-Z90

Introduction

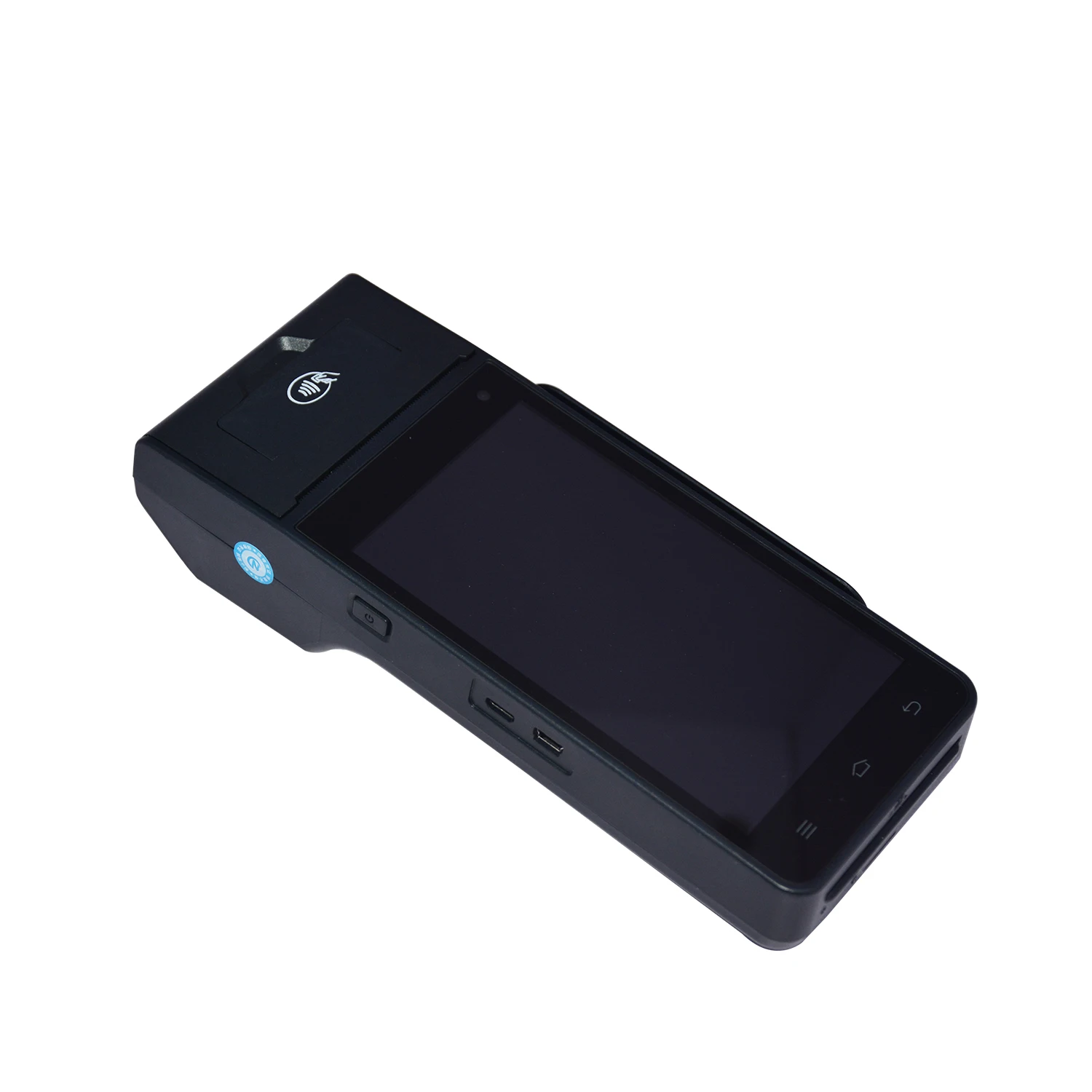

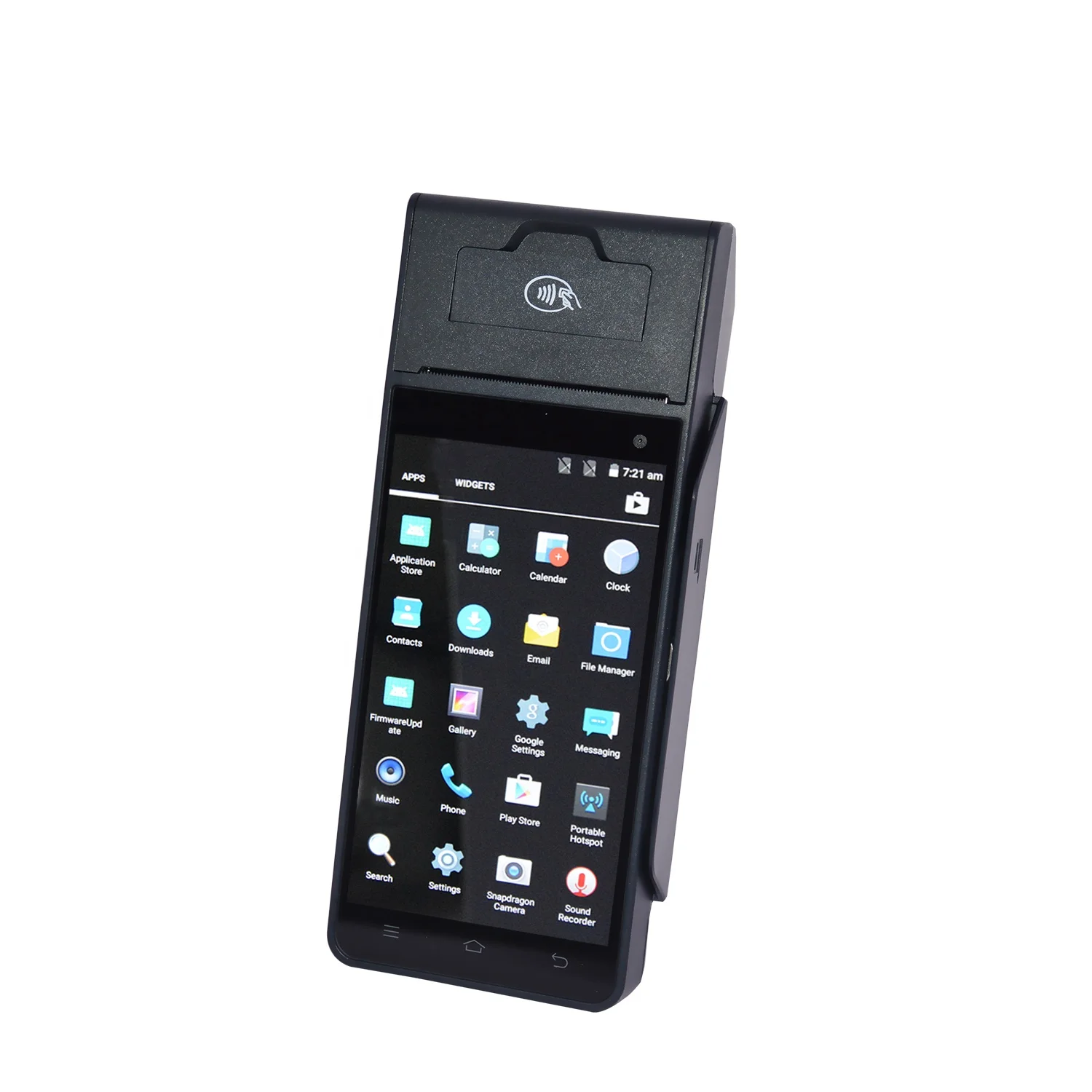

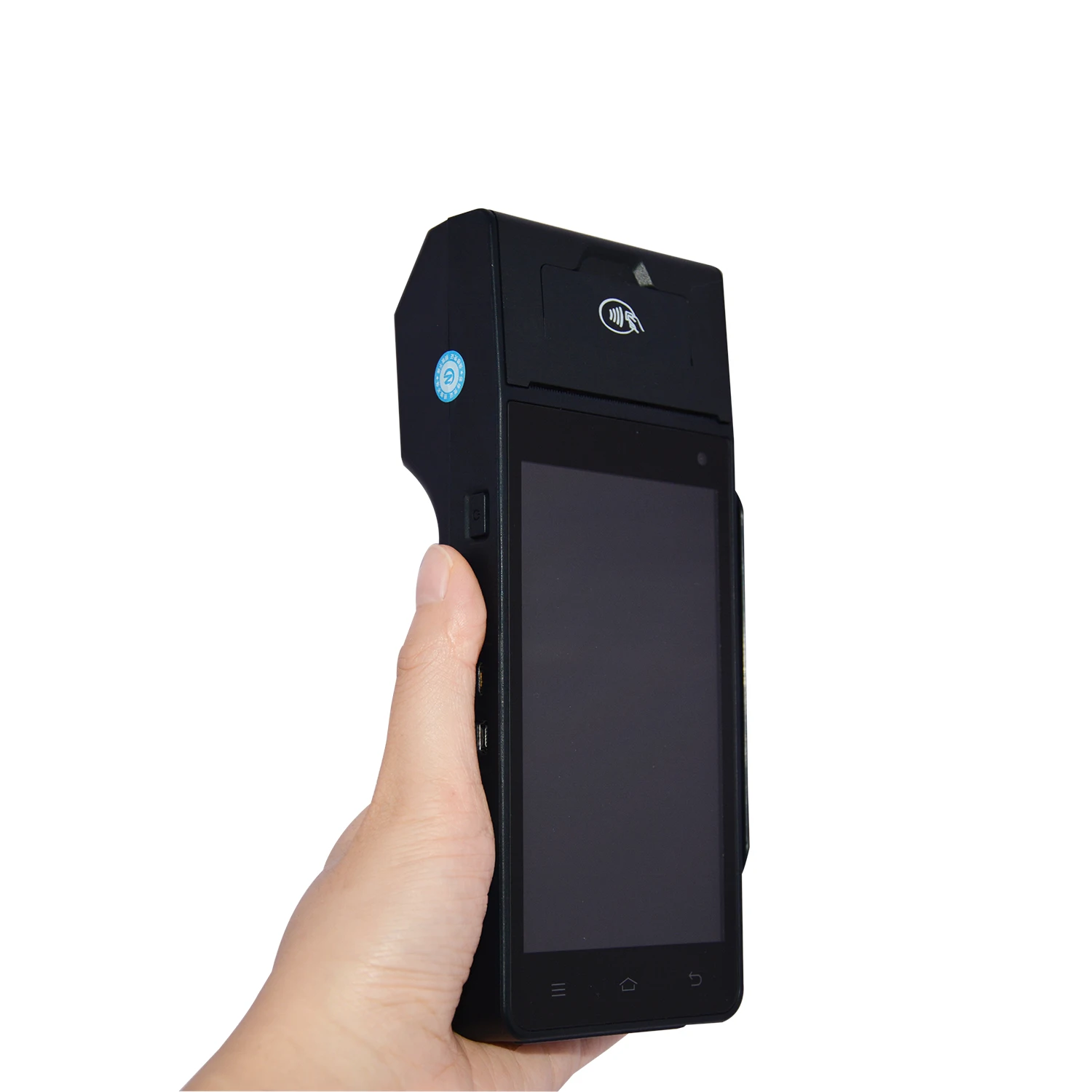

HCC-Z90 Android smart POS, operating system Android 5.1, no buttons, full touch screen, 5.0-inch large screen, long standby, thermal paper printing, rear camera 500W pixels, front camera 30W pixels, achieve 2G / 3G / 4G / Wifi / Bluetooth communication, brush magnetic stripe card + inductive IC card + contact IC card, fine workmanship, top quality, expanding market choice, applicable to supermarket chains, chain restaurants, convenience stores, clothing stores, bakery shops Such cashiers, payments, invoicing and business management functions.



Features

Ø Android 5.1 depth system customization, quad-core high performance + financial grade security, dual CPU design.

Ø Low-power design, support sleep for 100 hours standby, can complete 500 transactions.

Ø Large-capacity lithium-ion battery, 5V mobile phone charging, support 58MM width paper roll high-speed printing.

Ø Concise fashion: 2CM to thin body Build industry benchmarks, bring ultimate comfort grip, customized LOGO, color, boot LOGO screen.

Ø Card type: three-track magnetic card, contact type CPU card, contactless card.

Ø Anti-disassembler function design, support remote firmware update.

Ø EMV / PBOC L1 & L2 certification, non-connected EMV / qPBOC L1 & L2, PCI / UnionPay point-of-sale terminal security certification, 3C, FCC, CE, RoHS certification.



Specification

Operating system

Android 5.1 secure payment system

RAM

RAM: 1GB EMMC: 8GB

CPU

Qualcomm Quad-Core ARM Cortex A7 processor clocked at 1.1GHz

Extended storage

Micro SD card interface

Monitor

5.0 inches, resolution 480*854

Touch screen

Capacitive touch screen, support for electronic signature

Printer

Built-in high-speed thermal printer

Paper roll: 58*30mm

Magnetic card reader

Supports 1/2/3 magnetic card channels, two-way card swiping

IC card reader

Compliance with EMV and PBOC specifications, support for Class A (5.0V), Class B (3.0V) or Class C (1.8V) cards

SAM card holder

1 Pcs

SIM card holder

2 Pcs

Contactless reader

Supports ISO/IEC 14443 Type A&B, Mifare cards, compliant with non-connected EMV/qPBOC, specification read status indicator

USB interface

1 Micro USB OTG, compatible with USB2.0 HS standard, 1 serial port

Communication method

2G, 3G and 4G, Wi-Fi, hot spot, Bluetooth communication

GPS

Supports built-in GPS

Camera

Rear 500W pixels, front 30W

Optional: front 200W

Bar code reader

Supports 1D/2D scanning

Multimedia

Support recording, support voice playback, support video playback / recording

Password keyboard

Built-in password keyboard (virtual keys)

Support DES, 3DES, RSA, SHA-256 and AES algorithms

Battery

Lithium battery: 7.4V 2800mAh

Power Adapter

Input: 110V~240V AC/50~60Hz

Output: 5V DC/2A

Universal Micro USB Interface

Machine size

191.6mm×80.2mm×46mm

Machine weight

424g

Package Size

240mm*162mm*70mm

Package weight

700g

Standard accessories

Power adapter, manual, warranty card, USB charging cable, charger (optional),Leather case (optional)

Certified

EMV L1/L2, PBOC L1/L2, non-connected EMV L1, QUICS, QPBOC L1/L2, UnionPay smart point-of-sale terminal authentication, 3C, FCC, CE.
