5.5inch 3G 4G WiFi Bluetooth Smart Handheld Android POS Device With Thermal Printer HCC-Z100C

  • 1 - 49 Units
    $140.00
  • 50 - 99 Units
    $130.00
  • 100 - 499 Units
    $125.00
  • >=500 Units
    $120.00
Model Number:
HCC-Z100C
Screen Size:
Other
Lead Time:
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 100 Units)

More

Graphic customization (Min. Order: 100 Units) Less
Samples:
$140.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 YEAR
Operation System:
Android 7.0
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
ROM:8GB ROM EMMC;RAM:1G RAM LPDDR3
Display:
5.5 inch TFT IPS LCD
resolution:
1280*720
Dual camera:
QR code scan & 2D scanner
Functions:
Printer+Camera+GPS+SIM Card Slot
Communication:
4G/3G/2G/WIFI/Bluetooth
ROM+RAM:
8GB ROM+1G RAM
Charging Port:
Type C USB Port ,5V DC,2A
Panel:
Can work with gloves and wet fingers
Operating Temperature:
-10°C to 50°C
Storage Temperature:
-20°C to 70°C
Supply Ability
Supply Ability:
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
General Packing For 5.5inch 3G 4G WiFi Bluetooth Smart Handheld Android POS Device With Thermal Printer HCC-Z100C
Port
Shanghai/Shenzhen/Hongkong/Guangzhou
Lead Time :
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated
Video Description
Product Description
  • Product performance description

Android Smart POS Terminal, support MSR, smart card and NFC card, with 5MP camera, 4G, 3 G and 2 G network, and Wifi+Bluetooth, with 58mm printer O/S is Android 7.0

Product Paramenters

5.5inch 3G 4G WiFi Bluetooth Smart Handheld Android POS Device With Thermal Printer HCC-Z100C

General

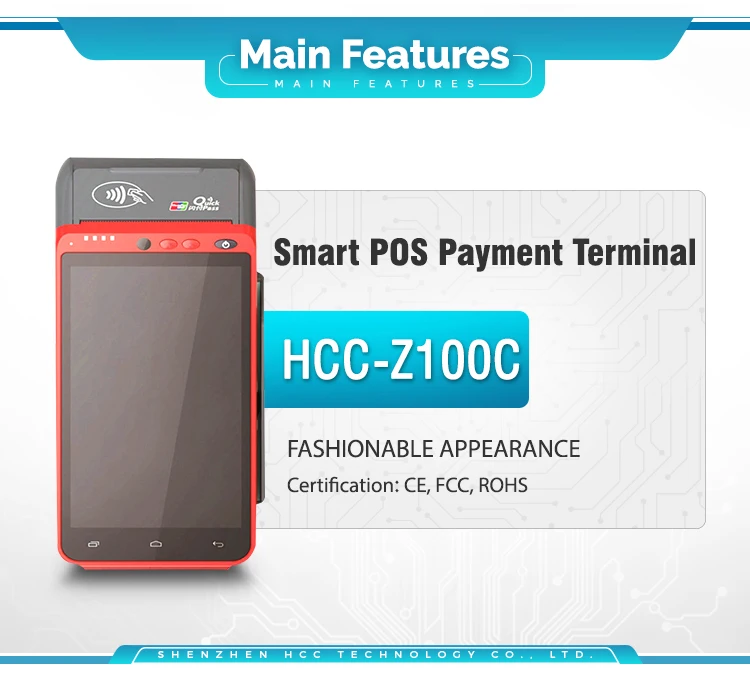

* The HCC-Z100Cis the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
* Empowered by Quad-core CPU and massive memory, HCC-Z100C enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Radio Communication
WIFI
IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
Bluetooth
BT 4.0 LE +EDR
4G
TD-LTE:Band38, Band39, Band40, Band41
FDD-LTE:Band1,Band3,Band7,Band8,Band20
3G
UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
TD-SCDMA:Band34,Band39
2G
GSM/GPRS/EDGE:850/900/1800/1900MHZ
Payment
Magnetic Card reader
Supports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card reader
Supports ISO7816 standard;
AT24C01、AT24C02、AT24C04、AT24C08、AT24C16、AT24C32、AT24C64、AT88SC101、AT88SC102、AT88SC153、AT88SC1608、SLE4442、SLE4428;
Contactless Card reader
Supports 14443A / 14443B、NFC-F(JIS 6319-4)、NFC-V(ISO 15693)、ISO-DEP(ISO 14443-4)、FeliCa、MIFARE、DESFire
Expansion and peripherals
Printer
High-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll;
Camera
5MP camera with LED flash and auto-focus function
Satellite Positioning
GPS, Supports A-GPS
Audio
Speaker ,Microphone, Earphone
Interfaces
Micro SD Card Slot
1 PCS
SIM Card Slot
2 PCS MICRO SIM
PSAM Card Slot
2 PCS Conforms to ISO7816 standard
USB Port
1PCS TYPE C USB
Power
Battery
Li-ion battery, 7.4V /2600mAH
Charging Port
Type C USB Port ,5V DC,2A
Environment
Operating Temperature
-10°C to 50°C
Storage Temperature
-20°C to 70°C
Humidity
5% to 95% Relative Humidity, Non-Condensing
Certification
Electromagnetic
CE, FCC, ROHS
Anti-tamper
Without Anti-tamper function

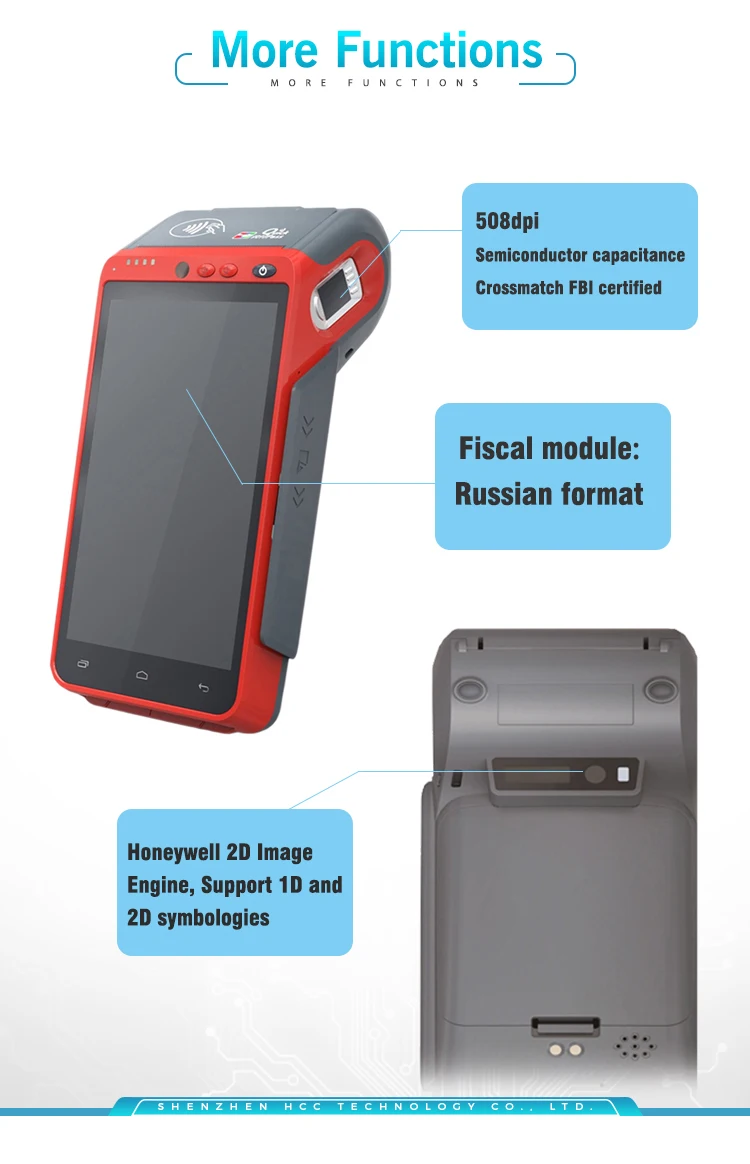

Optional
Fingerprint
Semiconductor capacitance
18mm x 12.8mm imaging area
256 x 360 pixel array
Crossmatch FBI certified
508dpi
Front camera
2 Megapixel Fixed Focal Camera
Barcode Scanner
Honeywell 2D Image Engine, Support 1D and 2D symbologies
Positioning
GLONASS, Bei-Dou satellite navigation system
Fiscal Module
Russian format
Details Images
Payment
Magnetic Card reader
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
Contactless Card reader
Supports 14443A / 14443B、NFC-F(JIS 6319-4)、NFC-V(ISO 15693)、ISO-DEP(ISO 14443-4)、FeliCa、MIFARE、DESFire
Smart Card reader
Supports ISO7816 standard;
AT24C01、AT24C02、AT24C04、AT24C08、AT24C16、AT24C32、AT24C64、AT88SC101、AT88SC102、AT88SC153、AT88SC1608、SLE4442、SLE4428;

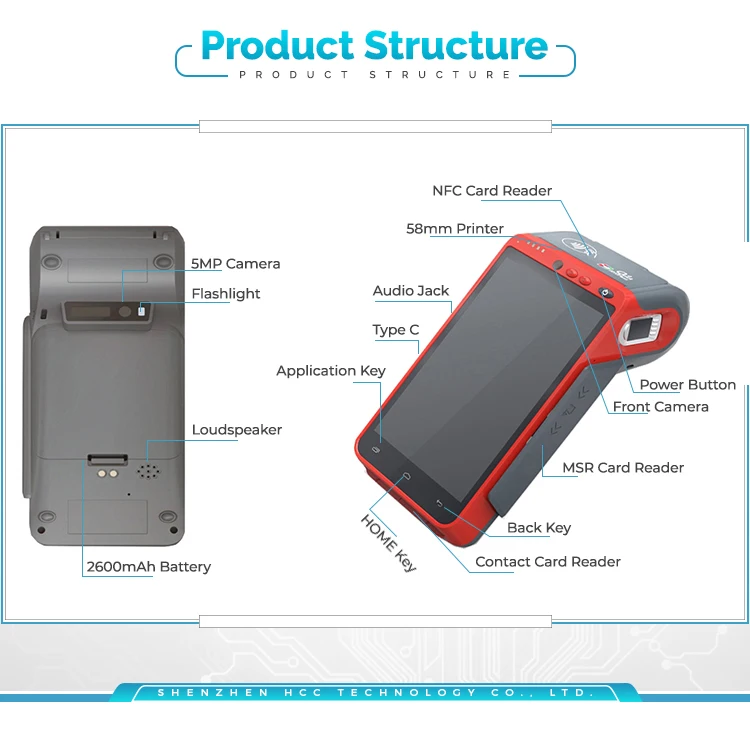

Exterior

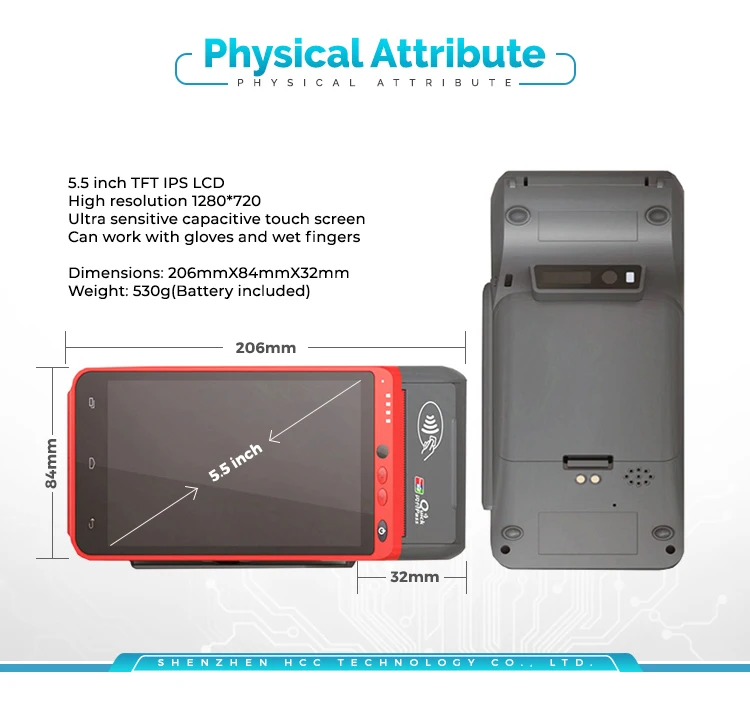

5.5 inch TFT IPS LCD
resolution 1280*720
5MP camera with LED flash and auto-focus function
High-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll;
Seiko Printing Head
