Mini Portable Access Control EMV USB Smart Card Reader ACR39U-N1

  • 1 - 99 Units
    $16.00
  • 100 - 499 Units
    $12.00
  • 500 - 999 Units
    $11.00
  • >=1000 Units
    $9.00
Color:
Lead Time:
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 Negotiable
Customization:
Customized logo (Min. Order: 100 Units)
Customized packaging (Min. Order: 100 Units)

More

Graphic customization (Min. Order: 100 Units) Less
Samples:
$16.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Certification:
FCC CE EMV ROHS CCID
Brand Name:
HCCTG
Model Number:
ACR39U-N1
Type:
CF Card, Memory Stick Card, MMC CARD, SD Card, SM Card, XD Card
Interface:
USB
Card Slots:
All in 1 / Multi in 1
Installation:
External
Place of Origin:
Guangdong, China
Material:
ABS
Support Card:
SD TF Memory Card Reader
Application:
IUSB Pro
Connector Type:
Standard Type A
Speed:
USB Full Speed (12 Mbps)
Supply Voltage:
5 V
Standard:
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Smart Card Read/Write Speed:
9.6 Kbps - 600 Kbps
Card Connector Type:
Contact
Card Insertion Cycles:
Min. 100,000
Clock Frequency:
4.8 MHz
LED:
Green
MTBF:
500,000 hrs
Supply Ability
Supply Ability:
9999 Unit/Units per Month access card reader writer
Packaging & Delivery
Packaging Details
NEUTRAL PACKING FOR Mini Portable Access Control EMV USB Smart Card Reader ACR39U-N1
Port
SHENZHEN,GUANGZHOU,HONGKONG,SHANGHAI
Lead Time :
Quantity(Units) 1 - 50 51 - 100 >100
Est. Time(days) 7 14 To be negotiated

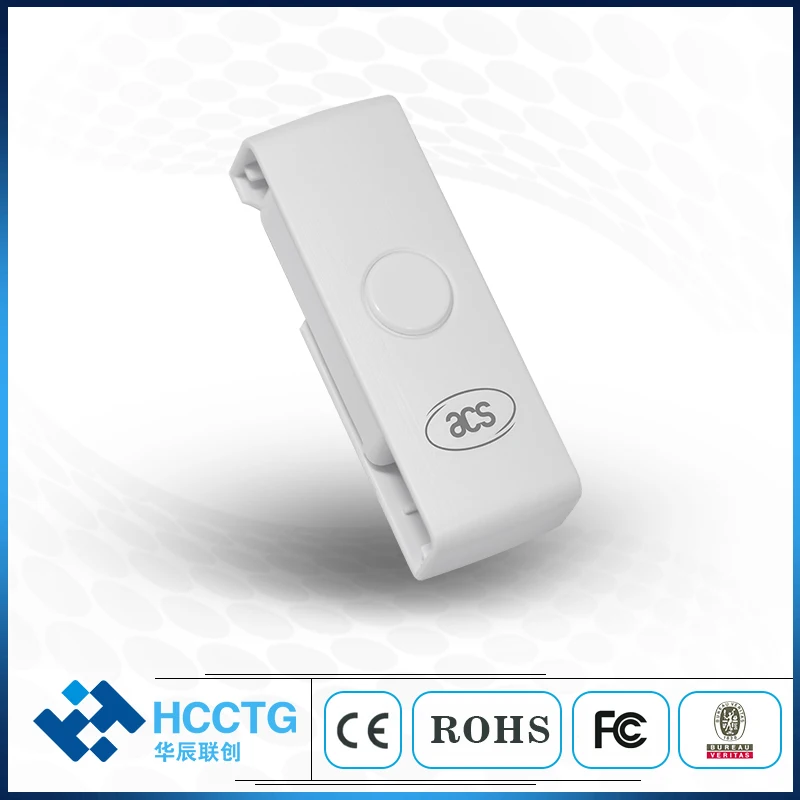

Mini Portable Access Control EMV USB Smart Card Reader ACR39U-N1



General

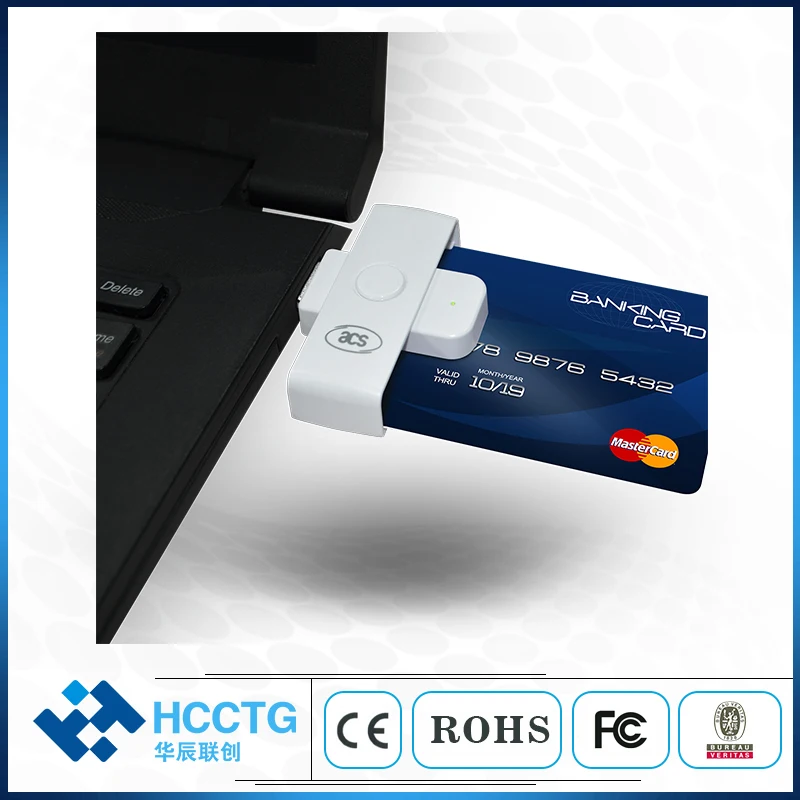

ACR39U-N1 is a smart card reader that has more to it than meets the eye. No larger than a standard USB token, it transforms into a smart card reader for full-sized contact smart cards with just a single swivel motion. It is capable of supporting demanding smart card applications, balancing functionality and design aesthetics to meet your security needs in applications like e-Banking, e-Payment, Physical and Logical Access and e-Government.

Housing the ACR38 core, ACR38U-N1 PocketMate supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V), microprocessor cards with the T=0, and T=1 protocols. In addition, it supports a wide variety of memory cards in the market, including the Department of Defense Common Access Card (CAC). This makes it ideal for a broad range of solutions, such as PIV Application and Digital Signature.

The highly compact ACR38U-N1 PocketMate is designed to be used anytime, anywhere. Being a PC/SC and CCID compliant device, ACR38U PocketMate can easily be integrated into a PC environment, with drivers that are compatible with Windows, Linux and Mac operating systems. Also, ACR38U-N1 PocketMate may now be used on mobile devices running on Android™ platform versions 3.1 and above.

With its various features, this FIPS 201-certified smart card reader is the perfect device for your smart card solution.



Feature

Ø USB 2.0 Full Speed Interface

Ø USB Type A Connector

Ø Plug and Play – CCID support brings utmost mobility

Ø Swivel Motion Design

Ø Smart Card Reader:

 Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

 Supports CAC

 Supports SIPRNET Card

 Supports J-LIS card

 Supports microprocessor cards with T=0 and T=1 protocol

 Supports memory cards

 Supports PPS (Protocol and Parameters Selection)

 Features Short Circuit Protection

Ø Application Programming Interface:

 Supports PC/SC

 Supports CT-API (through wrapper on top of PC/SC)

Ø Supports Android™ 3.1 and later1

Ø Compliant with the following standards:

EN 60950/IEC 60950, ISO 7816,EMV™ Level 1 (Contact),PC/SC,CCID,CE,FCC

WEEE, RoHS 2, REACH, TAA (USA)

J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL



Specification

Dimensions

58.0 mm (L) x 20 mm (W) x 13.7 mm (H)

Weight

12.0g

Color

White

Protocol

USB CCID

Connector Type

Standard Type A

Power Source

From USB port

Speed

USB Full Speed (12 Mbps)

Supply Voltage

5 V

Number of Slot

1 Full-sized Card Slot

Standard

ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol

T=0; T=1; Memory Card Support

Supply Current

Max. 50mA

Smart Card Read/Write Speed

9.6 Kbps – 600 Kbps

Short Circuit Protection

(+5) V/GND on all pins

Clock Frequency

4.8 MHz

Card Connector Type

Contact

Card Insertion Cycles

Min. 100,000

LED

Green

PC-linked Mode

PC/SC

CT-API (through wrapper on top of PC/SC)

Temperature

0 °C – 60 °C

Humidity

Max. 90% (non-condensing)

MTBF

500,000 hrs

Certifications/Compliance



EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL

Device Driver Operating System Support



Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016



Application

e-Government

e-Banking  and e-Payment

e-Healthcare

Public Key Infrastructure

Network Security

Access Control

Loyalty Program





Auto ID Products

Our Factory-Auto ID

Certificates-Auto ID



FQA

1.What is your business scope?
We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service

according to our customers’ various application and demands.



2.What is your mode of payment?
T/T, PAYPAL, Western Union, L/C, Trade Assurance, Credit Card, Cash, MoneyGram, D/P, D/A etc.



3.When will you delivery the goods?
Sample: 2-7 days;
Quantity order: 7-30 days upon deposit received;
Customized Product: according to the contract delivery time.



4.Would you provide SDK for me?
Yes, We offer free SDK if you order sample. All the contents in a CD ROM with sample together.



5.What is the FOB price and CIF price
In general, our prices are given on a FOB basis. For CIF price, I will check the cost from our shipping agent and recommend to you.



6.How can you guarantee the quality?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.



7.How can you guarantee the exclusive sale for OEM & ODM service?
Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.



8.What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
